ultrasonic flow meter / for liquids / high-accuracy / mobile
Flow-5 HB-THERM

{{requestButtons}}

Characteristics

  • Technology:

    ultrasonic

  • Fluid:

    for liquids

  • Other characteristics:

    high-accuracy, mobile, in-line

  • Process pressure:

    8 bar, 20 bar, 25 bar (116.03 psi)

  • Process temperature:

    Max.: 180 °C (356 °F)

    Min.: 0 °C (32 °F)

  • Volumetric flow rate:

    Max.: 40 l/min (10.6 us gal/min)

    Min.: 0.4 l/min (0.1 us gal/min)

Description

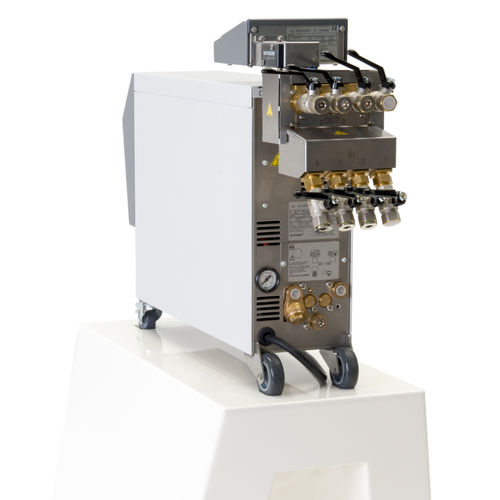

Flow Meter Flow-5
In parallel connected circuits flow changes might remain undetected as the flow of medium is distributed among the remaining channels.
External flow meters Flow-5 monitor parallel circuits individually and detect changes early on, before production quality begins to be compromised.
The Flow-5 are easy to operate and provide highly accurate ultrasonic measurements.

Advantages of parallel connected circuits

Larger overall flow ► faster temperature control!
Smaller temperature difference between main line and return line
Better homogeneity in temperature distribution
Fewer temperature control units necessary (Summarizing identical temperature levels saves money and energy)
