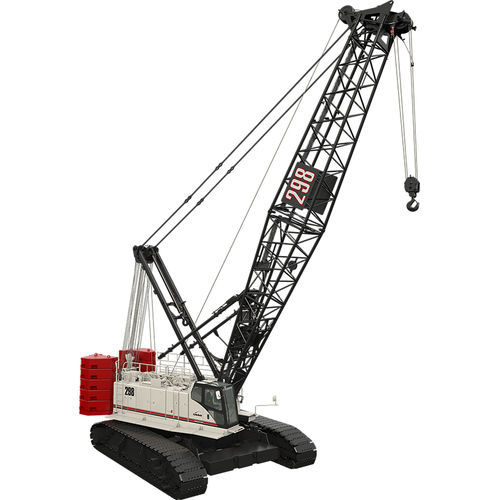

Crawler crane 298 series 2boomlatticeconstruction
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Structure
- boom, lattice
- Operating environment
- construction
- Applications
- lifting, transport
- Other characteristics
- hydraulic
- Lift capacity
230,000 kg
(507,063.2 lb)- Working height
Max.: 91.4 m
(299'10" )Min.: 18.3 m
(60'00" )
Description
• Base Rating : 250 U.S. Tons @ 15'radius
• Boom Lengths : 60' - 290'
• Fixed Jib Lengths : 30' - 90'
• Fixed Jib Offsets : 10°, 20° & 30°
• Maximum Tip Height (Fixed Jib) : 342'
• Engine Make & Model : Cummins QSL 9
• Horsepower : 320 Gross H.P. @ 1,800 rpm
• Maximum Hoist Pull / Speed : 53,306#
• Working Weight : 416,538# w/48" shoes
• Main Transport Load : 88,000# (1 Over Weight Load)
• Heavy duty combination top section for conventional and luffing jib configurations
• Bar pendants
• Boom walkways
• Quiet, smooth running, fuel efficient Cummins QSL9 Tier 4 Final power with 320 hp
• Matching front and rear drums - 35.3 in wide, grooved for 28mm rope
• Optional free-fall
• Optional third drum mounts in boom
• 11-piece modular counter weight system with remote control operated hydraulic removal system
• Standard collapsible upper guard rails
