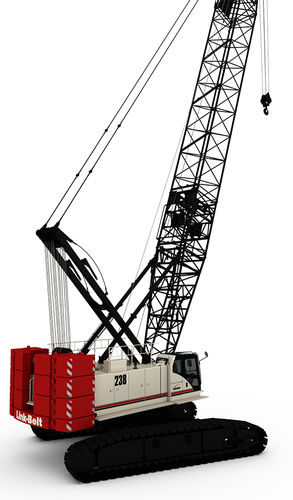

Crawler crane 238 HSL

boomlatticefor construction

Base Rating 150 USt @ 14 ft Fixed Jib Lengths 30 – 80 ft Fixed Jib Offsets 5°, 15°, & 25° Maximum Combination (Fixed Jib) Tube: 230 ft + 80 ft Maximum Tip Height (Fixed Jib) 314.2 ft Engine Make & Model Cummins QSB6.7 Tier 4 Final Maximum Hoist Line Pull / Speed 46,924 lbs / 502 fpm Working Weight 262,677 lbs Main Transport Load 87,000 lbs w/o tracks Key Features Spacious cab with wide job site view Fully adjustable seat and console for operator comfort Fully adjustable operation speeds for fast and precise jobs Dual throttle with total horsepower control Operator limits with function slow down and stop Link-Belt Vision Package – Standard Full-leveled 360 degree chart pick and carry Designed for multifunction under any load conditions Auto brake and free swing Free fall standard Self-assembly Transport all overflow loads under 45,000 lbs Pin catcher for boom assembly/disassembly Boom pendant storage
