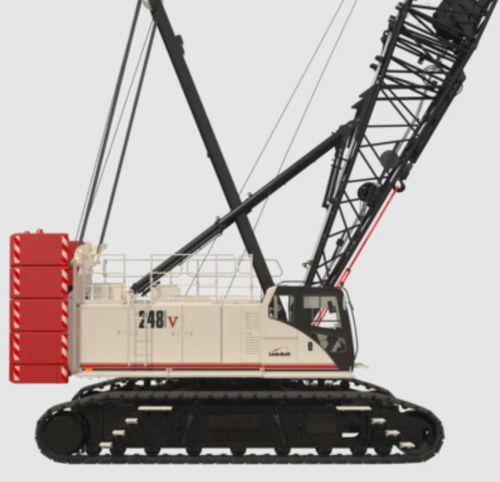

Crawler crane 248|V

luffing jibfor constructionlifting

Base Rating 181 mt Fixed Jib Lengths 9.1 m – 30.5 m Maximum Combination (Fixed Jib) Tube: 245 ft + 100 ft Fixed Jib Offsets 5°, 15°, & 25° Luffer Lengths 25.9 m – 56.4 m Maximum Combination (Luffer) 155 ft + 185 ft Engine Make & Model Cummins QSB6.7 Tier 4 Final/Stage V Maximum Hoist Line Pull / Speed 46,925 lbs / 533 fpm Working Weight 359,286 lbs Main Transport Load 41 111 kg w/ base section Key Features Standard combo top for conventional boom, pile driving, luffing jib, fixed jib, and heavy-duty tip extension Spacious, climate-controlled cab with heated seat, featuring wide job site views Available HVAC Auxiliary Power Unit (APU) NEW 12-inch HSL-2 touchscreen load moment limiter Ground bearing pressures for conventional boom, fixed jib, and luffer Operator-setable working range restrictions with function slow down/stop Cummins Engine, compatible with HVO fuel Link-Belt’s Standard Vision Package with rear, winch, and swing cameras Dual throttle for engine speed and pump flow Designed for multifunction under any load condition Fine-tuning dials for function speeds Standard Winch Package with wet brakes and free fall Standard ECO winch for faster line speeds with lower engine RPM Full self-assembly; no assist crane required Heavy-duty undercarriage designed for durability and longevity Pick and carry all 360° capacities on level ground iCraneTrax telematics equipped Conventional boom and luffer bar pendants store on top of boom sections All boom sections feature double-tapered connection pins with pin catcher storage brackets Mounting lugs for power unit frame
