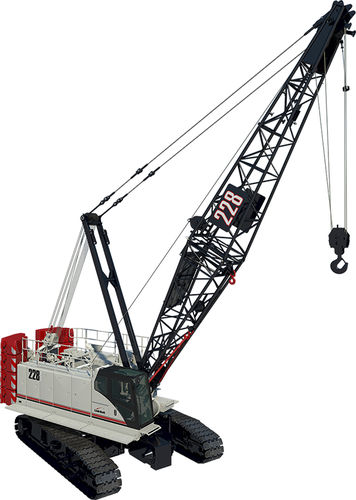

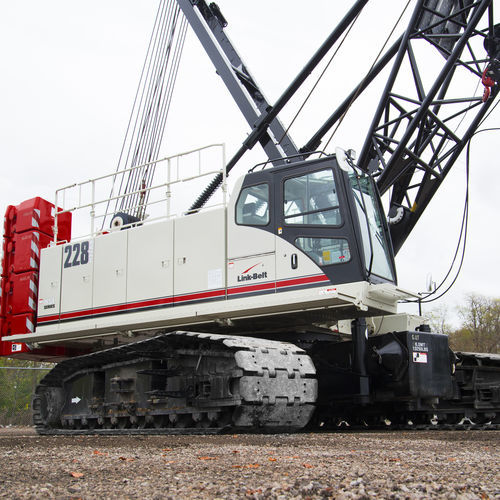

Crawler crane 228 HSL

boomlatticelifting

Base Rating 130 USt @ 12 ft Boom Lengths Angle: 45 ft – 155 ft Fixed Jib Lengths Tube: 30 ft – 75 ft Fixed Jib Offsets 5°, 15°, & 25° Maximum Combination (Fixed Jib) Tube: 205 ft + 75 ft Maximum Tip Height (Fixed Jib) 284 ft Engine Make & Model Cummins QSB6.7 Tier 4 Final Maximum Hoist Line Pull / Speed 44,565 lbs / 536 fpm Working Weight 235,041 lbs Key Features Excellent transportability — Five total loads with side frames installed with full boom and jib (six total loads with side frames removed with full boom and jib) Main load with main and auxiliary rope, boom base section, and side frames installed — 119,541 lbs (54 224 kg) Main load with main and auxiliary rope, boom base section and side frames removed — 73,941 lbs (33 540 kg) Standard car body jacks for self-assembly — maximum ground clearance of 44 in. (1.1 m) Standard upper guardrails — collapse down to meet transport height restrictions Nine-piece modular counterweight system design Two car body counterweights Seven-piece upper counterweights Innovative and fast counterweight removal system Optional “Quick-Draw” cylinder mounted in base section for self-assembly and disassembly Pendant storage on top of boom extension sections for transport Larger operator’s cab with standard modern features Vision Package includes rearview, winch-view, and left side swing camera system with color monitor Hydraulic flow volume dials for precision control Integral air conditioning and heating HSL capacity limiter with full-color graphic display
