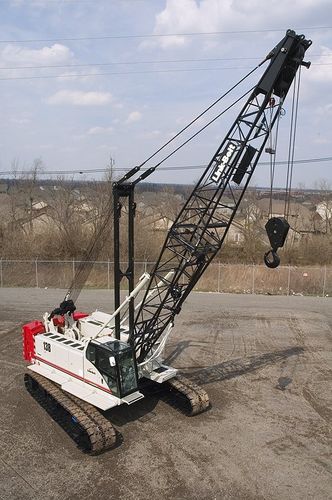

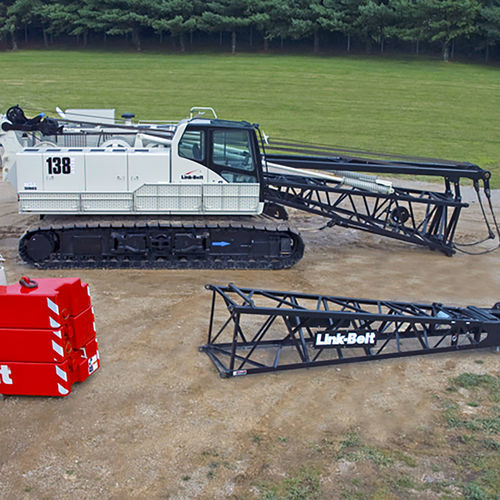

Crawler crane 138 HSL
boomlatticelifting

crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
Add to favorites
Compare this product

Characteristics

Configuration
crawler
Structure
boom, lattice
Other characteristics
lifting, transport
Lift capacity

80,000 kg (176,370 lb)

Working height

Max.: 60.96 m (200'00")

Min.: 12.19 m (39'11")

Description

• Cutting edge winch package with wet brake design and matching front & rear drums • 3-piece counterweight system, designed with innovative counterweight removal • Maximum tip height of tubular boom + jib: 242' (73.76 m) • HSL capacity limiter with high visibility color graphic display • Superior capacities • Swing drive provides smooth swing control • Transport complete crane under 90,000 lbs with base section, drums with rope and self assembly device, less counterweight • Angle boom - 40' - 150' (12.19 - 45.72 m) - Optional • 3rd & 4th drum - Optional • Smooth, quiet efficient Cummins power with total horsepower control provides unmatched line speeds under loads, as well as multi-function ability • Matching hoist drums with 7/8" inch rope and two operating modes • Power up/power down with automatic brake • Free fall with Link-Belt’s exclusive “wet brake design” provides best feel and control of any wet brake design Options include: • Third drum features controlled free spooling capability for pile driving applications or power up/down • Rear mount fourth drum — High line pull, free fall capable
