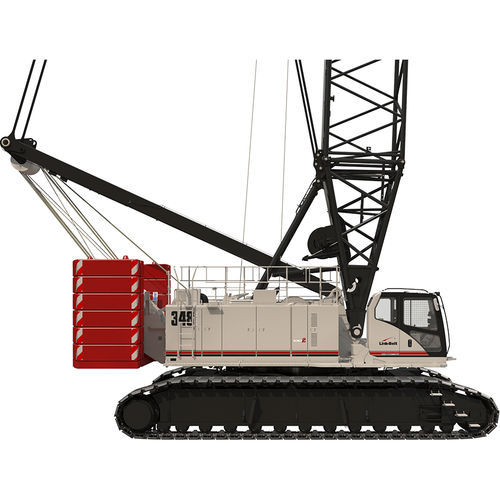

Crawler crane 348 series 2

boomlatticelifting

Base Rating 272.2 mt Fixed Jib Lengths 12.2 m – 42.7 m Fixed Jib Offsets 5°, 15°, & 30° Maximum Combination (Fixed Jib) 240 ft + 140 ft Heavy Duty / 295 ft + 140 ft Long Range Luffer Lengths 100 ft – 240 ft Maximum Combination (Luffer) 180 ft + 240 ft Engine Make & Model Cummins QSL9 Tier 4 Final Maximum Hoist Line Pull / Speed 24 179.2 kg / 156.9 mpm Working Weight 234 134.4 kg Main Transport Load 44 542.7 kg Key Features Heavy-duty combination top section for conventional and luffing jib configurations Ultrawide winch drum Common extensions with 348 HYLAB 5 New and improved counterweight removal system Transport weight: 98,200 lbs (44 550 kg) Bar pendants Boom walkways Quiet, smooth-running, fuel-efficient Cummins QSL9 Tier IV Final power with 320 hp Matching front and rear drums — 35.3 inches wide, grooved for 28 mm rope 17-piece modular counterweight system with remote control-operated hydraulic removal system Standard collapsible upper guardrails Optional third drum mounts in boom Optional free fall Spacious cab with wide job site view Fully adjustable seat and console for operator comfort Fully adjustable operation speeds for fast and precise jobs Dual throttle with total horsepower control Operator limits with function slow down and stop Link-Belt Vision Package – Standard Full-leveled 360 degree chart pick and carry Designed for multifunction under any load conditions Auto brake and free swing Self-assembly
