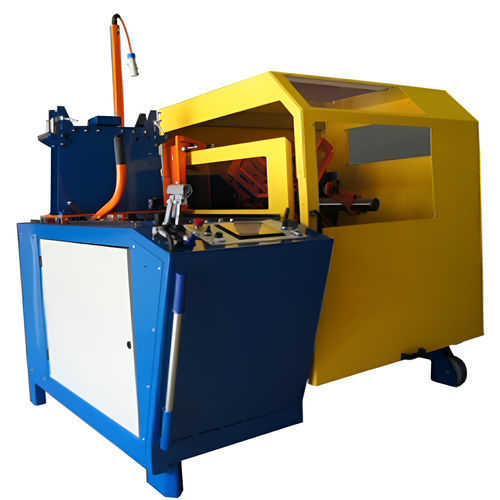

Motorized coiler DTR100

cablewith length measuring device

The measuring and coiling machines type DTR are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks and to be measured at the same time. The complete working process is carried out from one power source. Machines built using European Security normative CE Range of application With this measuring and coiling machine, type DTR, you can; make coils or fill small wooden drums of cable with a maximum weight of 800 Kg and measuring cable of a diameter between 1 to 60 mm. • Sturdy frame construction with steering wheels. • Mechanical counter M410, touch panel optional. • Coiler device RD100, to make coils of cable up to 800 Ø. • For drums up to 1 000mm Ø and 780 mm width • Hydraulic cylinder with a hand pump for lifting the drums • Electro-hydraulic optional to fast operation for lifting and cutting cable • Slow ramp and adjustable speed regulator with the use of a frequency inverter. • Safety cage with automatic switch lock following the CE securities directive Drum : Ø mm minimun : 600 Ø mm maximun : 1 000 Maximum width mm : 780 Maximum weight : 800 Kg Ø axle : 60 mm Drive : Power kW (HP) : 1,5 Kw (2) Speed ( R.P.M.) : 15-80 r.p.m. Voltage (V / Hz) : 230V 50 Hz Torque Nm. : 303 Nm Fusing : 1x16A Accesories : Coiling device included : RD100 Transport wheel : Measuring head : M40- M60 Mechanical counter type M410 : M410 Manual hydraulic lifting : Hydraulic cylinder lift : O Protection according to EC regulations : Dimensions : (L x W x H) cage closed : 1.700x1.800x1.950 mm (L x W x H) cage opened :1.700x1.800x2000 mm Weight Kg :500
