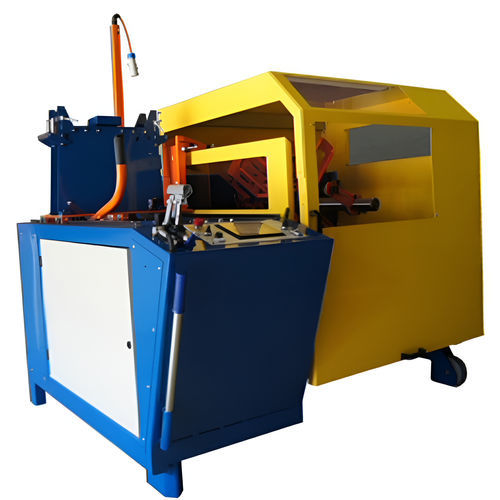

The measuring and coiling machines type DTR are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks and to be measured at the same time. The complete working process is carried out from one power source.
Machines built using European Security normative CE
Range of application
With this measuring and coiling machine, type DTR, you can; make coils or fill small wooden drums of cable with a maximum weight of 400 kg and measuring cable of a diameter between 1 to 60 mm.
• Sturdy frame construction with steering wheels.
• Mechanical counter M410, touch panel optional.
• Coiler device RD80, to make coils of cable up to 800 Ø.
• For drums up to 800mm Ø and 620 mm width
• Hydraulic cylinder with a hand pump for lifting the drums
• Electro-hydraulic optional to fast operation for lifting and cutting cable
• Slow ramp and adjustable speed regulator with the use of a frequency inverter.
• Safety cage with automatic switch lock following the CE securities directive
Drum :
Ø mm minimun : 400
Ø mm maximun : 800
Maximum width mm : 620
Maximum weight : 400 kg
Ø axle : 50 mm : 60 mm
Drive :
Power kW (HP) : 1,1 Kw :
Speed ( R.P.M.) : 15-80 r.p.m.
Voltage (V / Hz) : 230V 50Hz
Torque Nm. : 221Nm
Fusing : 1x16A
Accesories :
Coiling device included : RD100
Transport wheel :
Measuring head :M40- M60
Mechanical counter type M410 : M410
Manual hydraulic lifting :
Hydraulic cylinder lift : O
Protection according to EC regulations :
Dimensions :
(L x W x H) cage closed : 1.700x1.800x1.950 mm
(L x W x H) cage opened : 1.700x1.800x2000 mm
Weight Kg : 450
