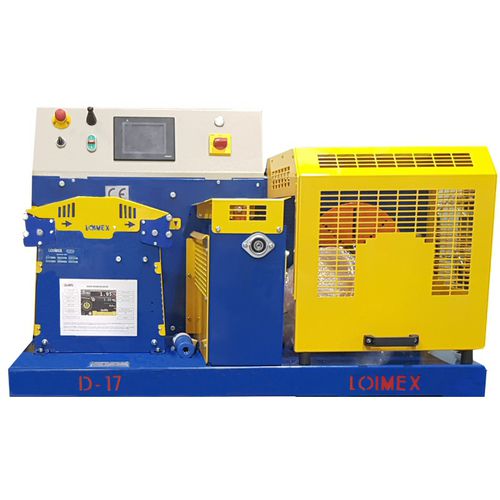

Cable coiler D17

motorizedwith length measuring device

Winding machine for measuring and making coils from 1 to 16mm diameter of cables and other flexible materials. Machine is composed of a measuring unit, a coiler unit and optionally an unwinding unit, all mounted in a sturdy frame of steel. Range of application To make coils of cable in drums or using the coiling head To measure electrical cables from 1 to 16 mm ط. Features • Sturdy frame construction, optional feet with wheels • M20 measurer included • Moto-reducer of 0,75 kw (1 HP) • Slow ramp and adjustable speed regulator with the use of a frequency inverter • Optional automatic cable laying • Coiling unit included, different options available • Safety cage following the CE securities directive. - Cable diameter : 1 a 16 mm - Counter capacity : 9.999,99 - Accuracy approx. : ± 0,5% - Steel cable : opcional : opcional - Speed ( R.P.M.) : 30-200 - Power kW (HP) : 0,75 (1) - Torque Nm. : 129 - Voltage (V / Hz) : 230/50 - Fusing : 1x16 A - Dimensions : 1.235x760x700 mm - Weight Kg : 125
