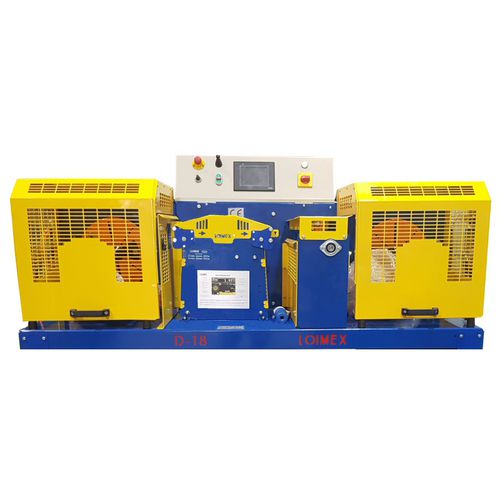

Automatic coiler D18
cablewith length measuring device

automatic coiler
automatic coiler
automatic coiler
automatic coiler
automatic coiler
automatic coiler
automatic coiler
Add to favorites
Compare this product


Characteristics

Operation
automatic
Applications
cable
Other characteristics
with length measuring device

Description

Winding machine for measuring and making coils from 1 to 16mm diameter of cables and other flexible materials. Machine is composed of a measuring unit, a coiler unit and optionally an unwinding unit, all mounted in a sturdy frame of steel. Range of application To make coils of cable in drums or using the coiling head To measure electrical cables from 1 to 16 mm Ø. Unwinding cable Features • Sturdy frame construction, optional feet with wheels • M20 measurer included • Moto-reducer of 0,75 kw (1 HP) • Slow ramp and adjustable speed regulator with the use of a frequency inverter • Unwinding otpional, with different options • Optional automatic cable laying • Coiling unit included, different options available • Safety cage following the CE securities directive. D18 Cable diameter : 1 a 16 mm Counter capacity : 9.999,99 Accuracy approx. : ± 0,5% Steel cable : opcional Variable Frequency Drive : Speed ( R.P.M.) : 30-200 Power kW (HP) : 0,75 (1) Torque Nm. : 129 Voltage (V / Hz) : 230/50 Fusing : 1x16 A Technical features : Dimensions : 1.680x760x700 mm Weight Kg : 155
