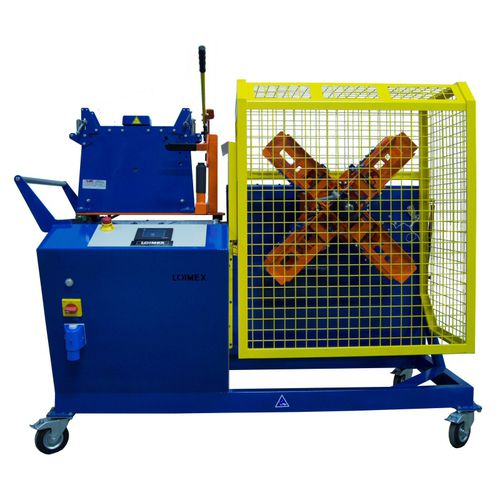

The measuring and uncoiling machines type D30 are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks and to be measured at the same time. The complete working process is carried out from one power source.
Machines built using European Security normative CE
Range of application
With this measuring and coiling machine, type D30, you can; make coils or fill small wooden drums of cable with a maximum weight of 200 kg and measuring cable of a diameter between 1 to 40 mm.
• Sturdy frame construction with steering wheels.
• Mechanical counter M410, touch panel optional.
• Coiler device RD30, to make coils of cable up to 800 Ø.
• For small drums of 800 Ø and 350mm width
• Slow ramp and adjustable speed regulator with the use of a frequency inverter.
• Safety cage with automatic switch lock following the CE securities directive
Manual distribution tray cable : -
Transport wheel : -
Measuring head : M40
Mechanical counter type M410 :
Coiling device for coils of cable :
Ø exterior mm : 800
Ø maximun cone mm : 420
Ø minimun cone mm : 350
width mm : 200
Maximun weight kg. : 150
Reels or small drums :
Ø exterior mm : 800
width mm : 350
Maximun weight kg. : 200
Variable Frequency Drive :
Speed ( R.P.M.) : 15-80 (<200)
Power kW (HP) : 1,1(1,5)
Torque Nm. : 221
Voltage (V / Hz) : 230/50-60 ( opt 220III V )
Fusing : 1x16 A
Dimensions :
