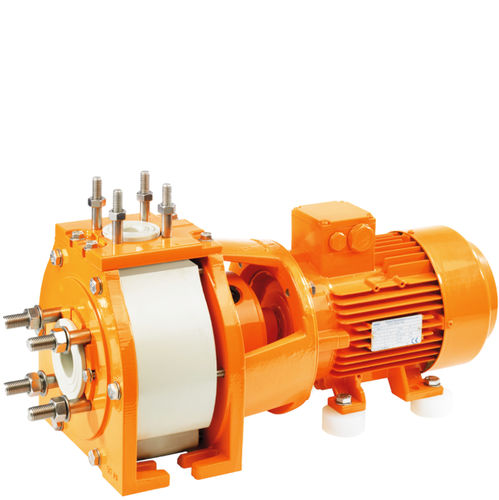

Water pump NP-B

for chemicalselectriccentrifugal with volute

Compact and economical – the alternative to standardized pumps Close-coupled pumps MUNSCH close-coupled pumps provide many users with a compact and cost-effective alternative to conventional standardized chemical pumps. Close-coupled pumps have a distinct advantage when it comes to footprint and weight. No need to say, the CS-B, NP-B, CM-B & TNP-series pumps as well meet the same high standards of operating reliability, robustness and quality as their frame-mounted counterparts and are available in numerous process configurations. What is a close-coupled pump? Close-coupled pumps are characterized by a common motor and pump shaft or by their motor shaft and pump shaft being rigidly connected in a pump casing. Rather than being supported by pump feet, the pump casing is directly bolted to the motor flange. This obviates the need for aligning the shafts with the pump casing, facilitating pump installation.
