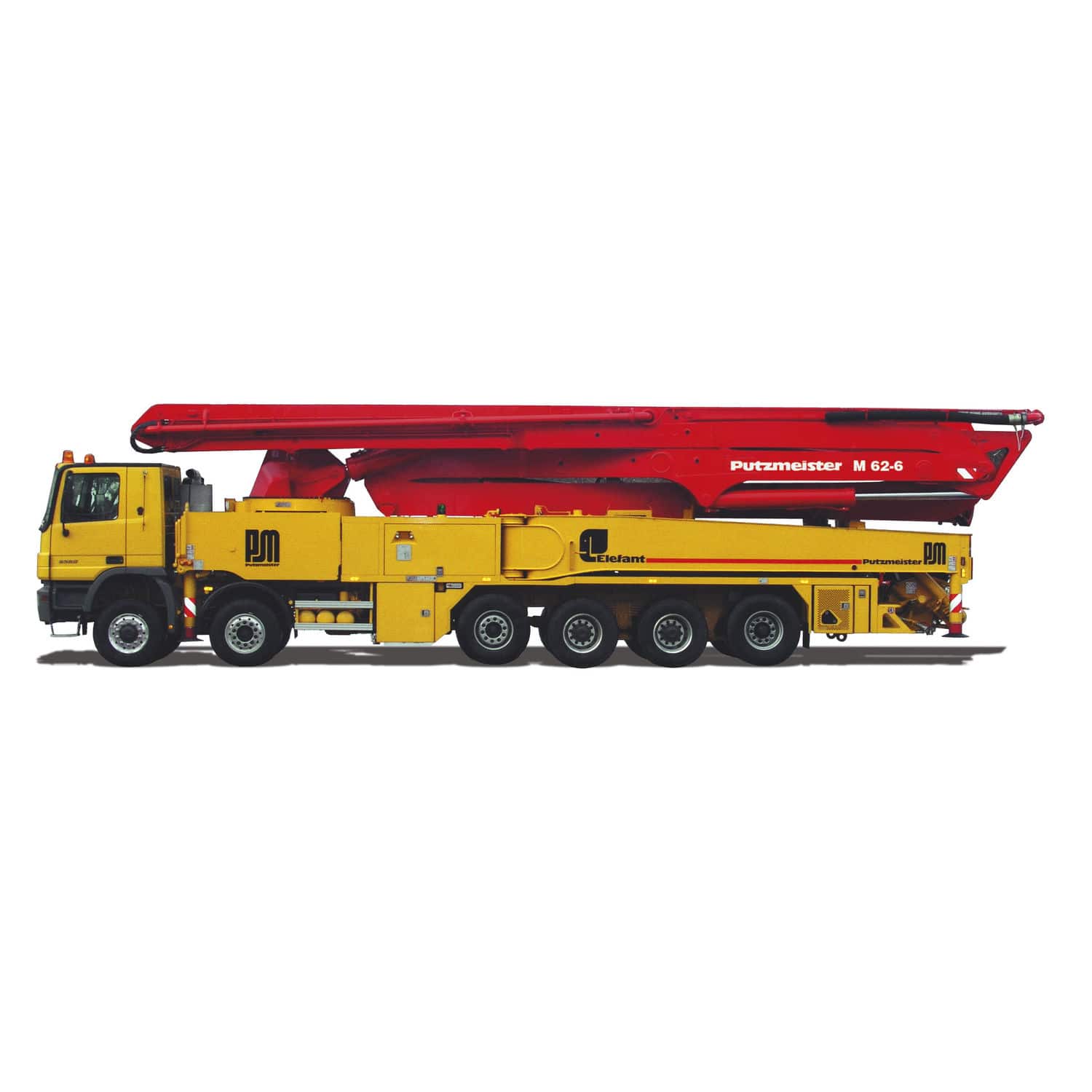

Construction truck-mounted concrete pump M 62-6

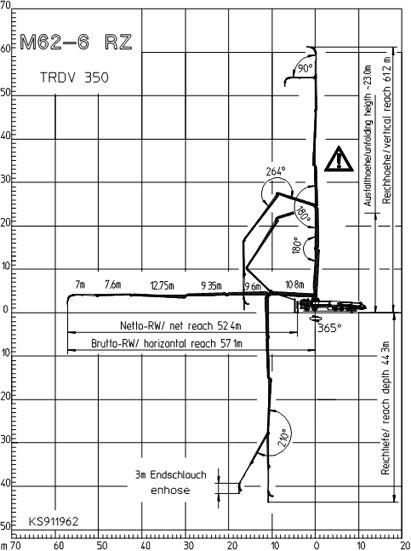

The Putzmeister M 62-6 truck-mounted concrete pump features a flexible six-section boom with a vertical reach of 62 meters and a low unfolding height. Optimal load moment distribution and enough weight reserve thanks to the 6-Axle chassis. Key Features Max. delivery rate of 190 cubic meters per hour 6-axle chassis for optimal load distribution Vertical reach of 62 meters Flexible RZ-folding 6-arm boom with low unfolding height Technical Details General Information Arms 6 Folding Type RZ-Folding Vertical Reach 61.1 m Horizontal Reach gross 57.1 m Horizontal Reach net 52.4 m Reach Depth 44.3 m Unfolding Height 23 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 12.4 / 12.2 m Support width OSS (front-rear) 7.5 / 8.3 m Support width ESC (front-rear) 7.5 / 7.6 m
