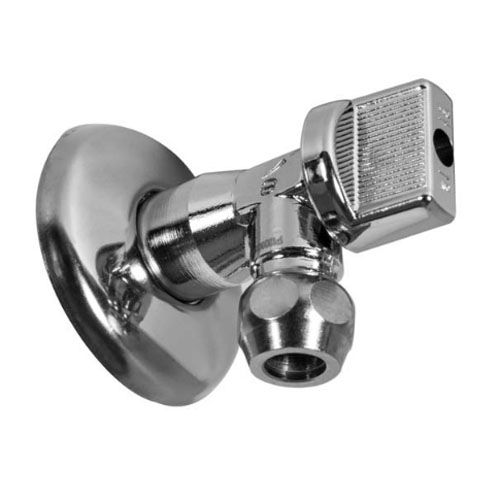

Sanitary valve 640 seriesballwith handwheelfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- with handwheel
- Media
- for water
- Body
- male, right-angle, chrome-plated brass, ABS, copper, NBR
- Applications
- sanitary, washer
- DN
0.5 in
- Pressure
10 bar
(145 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 90 °C
(194 °F)
Description
SPECIFICATIONS :
• - For copper pipe 010 mm or male 3/8"
• - Bore 0 5.5 mm
• - NBR gasket
• - ABS chromed handwheel
USE:
• - For water
• - Min Température Ts:-10°C
• - Max Température Ts:+90°C
• - Max Pressure Ps : 10 bars
RANGZi
• - Angle bail valve male chromed brass DN 3/8" - DN 1/2“ Ref. 640043
• - Angle bail valve male chromed brass DN 3/8' with nut for copper pipe 010 DN UT Ref. 640410
