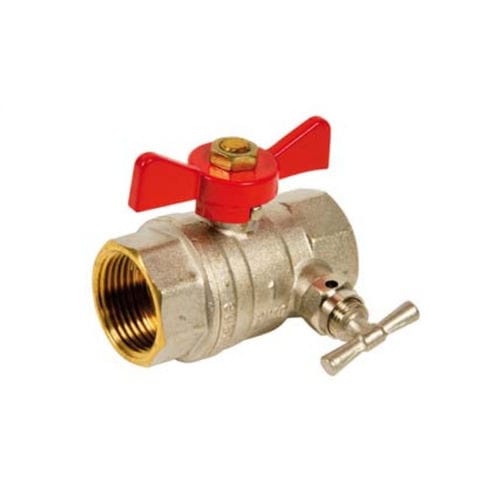

Ball valve 530 series
manualdistributionfor water

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Function
distribution
Media
for water
Body
female-female, stainless steel, nickel-plated brass, steel, aluminum, lead free
Applications
for water
Other characteristics
full-flow, with operating handle, with bleed valve
DN

0.5 in, 0.75 in, 1 in

Pressure

40 bar
(580.2 psi)

Temperature

Max.: 120 °C
(248 °F)

Min.: -10 °C
(14 °F)

Description

Developed for water distribution, the valve has a minimum temperature of 10°C, with a +120°C maximum. Pressure ranges are dependent on the valve's nominal diamater, with 40bar for DN V, 30bar for 1"1/4, 25 bar for 1"1/2, 20bar in 2, and 10bar for those above. The valve is built with a reversible handle, full bore, anti-blowout stem and solid ball, all in a PTFE packing. Handle options are between a flat steel or aluminum handle, with a handle nut Dacromet-coated or salt-spray protection. Imprinted on the handle is its marking body with ACS number, fabrication date, and logo. 4MS lead free brass bail valves full bore with large fiat sealing face for drinking water and water distribution. PTFE packing and anti blow-out stem. Fiat black réversible Steel handle with Dacromet coating. Stainless Steel bail from DN34" to 4", warranty 5 Years SPECIFICATIONS : • - Body in lead free brass CW510L 4MS (Cu2r»42) • - Brass CW510L according to the matenals list authorized by the 4 MS • - Full bore • - Anti blow-out stem • - Large fiat sealing face • - Stainless Steel bail from DN3/4* to 4" • - PTFE packing • - Fiat Steel handle or aluminium butterfly handle • - Handle nut Dacromet coated ( sait spray protection ) • - Marking body * 9SP * with ACS. 4MS. fabrication date and logo • - ACS and 4MS marking on the handle • - Réversible handle • - Hole on the handle allowing the lockmg of the valve (thanks to a nlsan clamp) USE: • - Heating. drinkable water. cooling, watering and irrigation • - Min température Ts : - 10°C • - Max température Ts :♦ 120°C • - Max Pressure Ps : 40 bars up to DN 1“. 30 bars in 1*1/4.25 bars in 1*1/2.20 bars in 2* and 10 bars over
