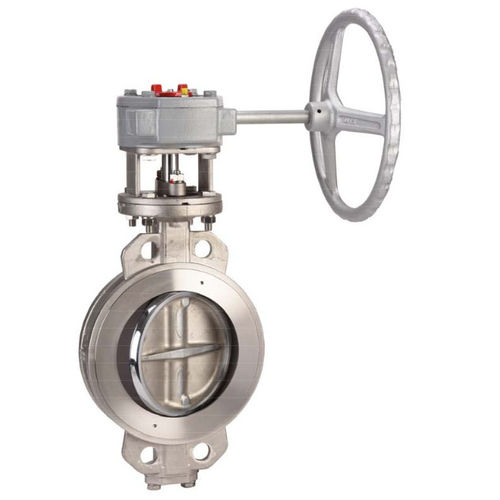

Butterfly valve 1115 series

with handwheelwaferdouble-offset

The DN50-500 1110 Series features a stainless steel CF8M disc, with a primer painting EP-02 epoxy red oxide primer RAL2012 and implemented with an EP-04 epoxy finish enamel grey RAL 7045 finishing. The carbon steel type (ref. 1115) is 10- 30 pm thick. Full crossing stem, has 10 positions operated by a ductile iron handle, with a locking device up to DN150 or NPS 6. The gear box is from DN 200 to DN600 or NPS 8"to 24". This device is wafer-type, double eccentric and 100% tight and bidirectional with preferential flow direction indicated by the arrow. The mounting pad complies to ISO 5211, fire safe complies to ISO 10497 : 2010,and lastly, Between ISO PN20 ANS1150 flanges. SPECIFICATIONS : • - 100% tightness • - Wafer type • - BetweenPN25orPN16flanges • - Double offset • - Bidirectional with preferential flow direction indicated by the arrow • - Fire safe according to ISO 10497 : 2010 • - ISO 5211 mounting pad • - Stamless Steel CF8M dise • - Full Crossing stem • - 10 positions ductile iron handle. with locking device up to DN150 • - GearboxfromDN200toDN600 • - Inorganic zinc rich primer, gray color. 10 pm thickness • - Finish paintmg heat resisting aluminum Silver color RAL 1504. 30 pm thickness • - Ductile iron EN GJS-400-15 handle with silver painting RAL 9006 color USE: • - Heatmg. geothermics. industnal cold. shipbuilding. petrochemical • - Steam : 10 bars maximum • - Min and max Température Ts : - 29°C to + 210°C • - Max Pressure Ps : 25 bars ( see graph ) • - When using at dead end of pipeline, reverse preferential flow direction RANGE.* • - Wafer type with carbon Steel body . and handle Ref. 1113 DN 50 to DN 150
