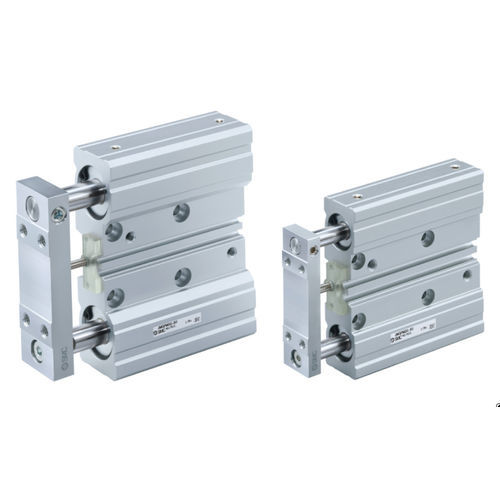

cylinder with guided piston rod / double-acting / miniature
JMGP series SMC PNEUMATIC

{{requestButtons}}

Characteristics

  • Technology:

    with guided piston rod, double-acting

  • Other characteristics:

    miniature

  • Stroke :

    Min.: 5 mm

    Max.: 20 mm

  • Speed:

    Min.: 0.05 m/s (0.164041995 ft/s)

    Max.: 0.5 m/s (1.640419948 ft/s)

Description

The MGJ Miniature Guide Rod Cylinder can have two auto switch functions mounted for up to 5 strokes. The integral piping and wiring found in this device is one direction improving performance, and the non-rotating accuracy is ±0.1°. The MGJ length is 23mm+ stroke, the width is 29mm, and the height is 14.5mm.
