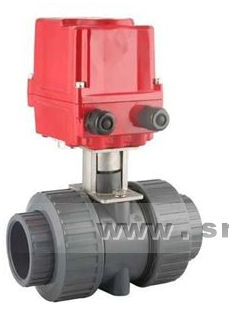

2-way electric plastic ball valve
1/2" - 4", 16 bar | T-EAV 913 series
SMS - TORK
output torque value 40Nm, 60Nm.
body Alüminium ,high grade alloy for housing,hard anodized and pollyester coated
protection class weaterproof,IP67, heater for humadity(10watt).
manuel ovirride hand wheel and hexagon under the actuator,
voltage 220V AC, or 24 V DC
open close time 12.. sn (50..60Hz ,90 degree turn)
motor reversible motor,
valve connection ISO5211standard, F03/F05/F07 flange connection
P.V.C. valves (by bonding or threading), P.P. valves (by welding or threading) can be mounted to some type plastic pipes. Both (by threding) can be mounted to metal pipes.
Special valves for water, acid, base or various hemcal environment.
Non-corrosive design (fluid do not touch any metal parts)
Even use much torque to ball valve connection, no press to ball.
In close position: Even remove connection, ball is not out.
Ball machined very special.
Easy moves, very good design.
All parts are injection molded, standart production and high strenght.
Ball valve no need any adjustment. If you want to remove the ball you can find special wrench over the handle. The wrench is used for remove the ball.
*20 mm.upto 63 mm. sizes valves 20°C' and 16 kg/cm2 bar.
*75 mm.upto 90 mm. sizes valves 20°C' and 10 kg/cm2 bar.
*110 mm. size valves 20°C' and 2kg/cm2 bar
body Alüminium ,high grade alloy for housing,hard anodized and pollyester coated
protection class weaterproof,IP67, heater for humadity(10watt).
manuel ovirride hand wheel and hexagon under the actuator,
voltage 220V AC, or 24 V DC
open close time 12.. sn (50..60Hz ,90 degree turn)
motor reversible motor,
valve connection ISO5211standard, F03/F05/F07 flange connection
P.V.C. valves (by bonding or threading), P.P. valves (by welding or threading) can be mounted to some type plastic pipes. Both (by threding) can be mounted to metal pipes.
Special valves for water, acid, base or various hemcal environment.
Non-corrosive design (fluid do not touch any metal parts)
Even use much torque to ball valve connection, no press to ball.
In close position: Even remove connection, ball is not out.
Ball machined very special.
Easy moves, very good design.
All parts are injection molded, standart production and high strenght.
Ball valve no need any adjustment. If you want to remove the ball you can find special wrench over the handle. The wrench is used for remove the ball.
*20 mm.upto 63 mm. sizes valves 20°C' and 16 kg/cm2 bar.
*75 mm.upto 90 mm. sizes valves 20°C' and 10 kg/cm2 bar.
*110 mm. size valves 20°C' and 2kg/cm2 bar
