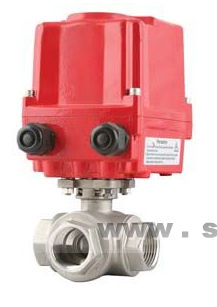

Electric 3-way ball valve
1/2" - 2", 40 bar | T-EAV 902 series
SMS - TORK
T-EAV902 Serie electric actuated AISI 316 stainless steel body,screwed connection ball valve,3/2 way. T-EAV Seria are 2 types actuated valve.
1.On-off controlled electric actuated ball valve
2.Proportional controlled electric actuated ball valve
application:water,hot water,air,aggressive fluid,food industry,gas,oil,steam.and others
TORK-REA 40 ve TORK-REA.60 Electric actuator features:
output torque value 40Nm, 60Nm.
body Alüminium ,high grade alloy for housing,hard anodized and pollyester coated
protection class weaterproof,IP67, heater for humadity(10watt).
manuel ovirride hand wheel and hexagon under the actuator,
voltage 220V AC, or 24 V DC
open close time 12.. sn (50..60Hz ,90 degree turn)
motor reversible motor,
valve connection ISO5211standard, F03/F05/F07 flange connection
TORK ball valve features:
body full bore,AISI 316 stainless steel and 3 parts body
way: two way.
o-ring PTFE
pressure suitable low and high pressure.
temperature -20....160 C degree
working pres. PN 40 bar(1/2"..11/4") , 16 bar(11/2"...3")
test all valves are tested 48 hour, at 20 barda
on request can be supply 2 parts body ball valve.
