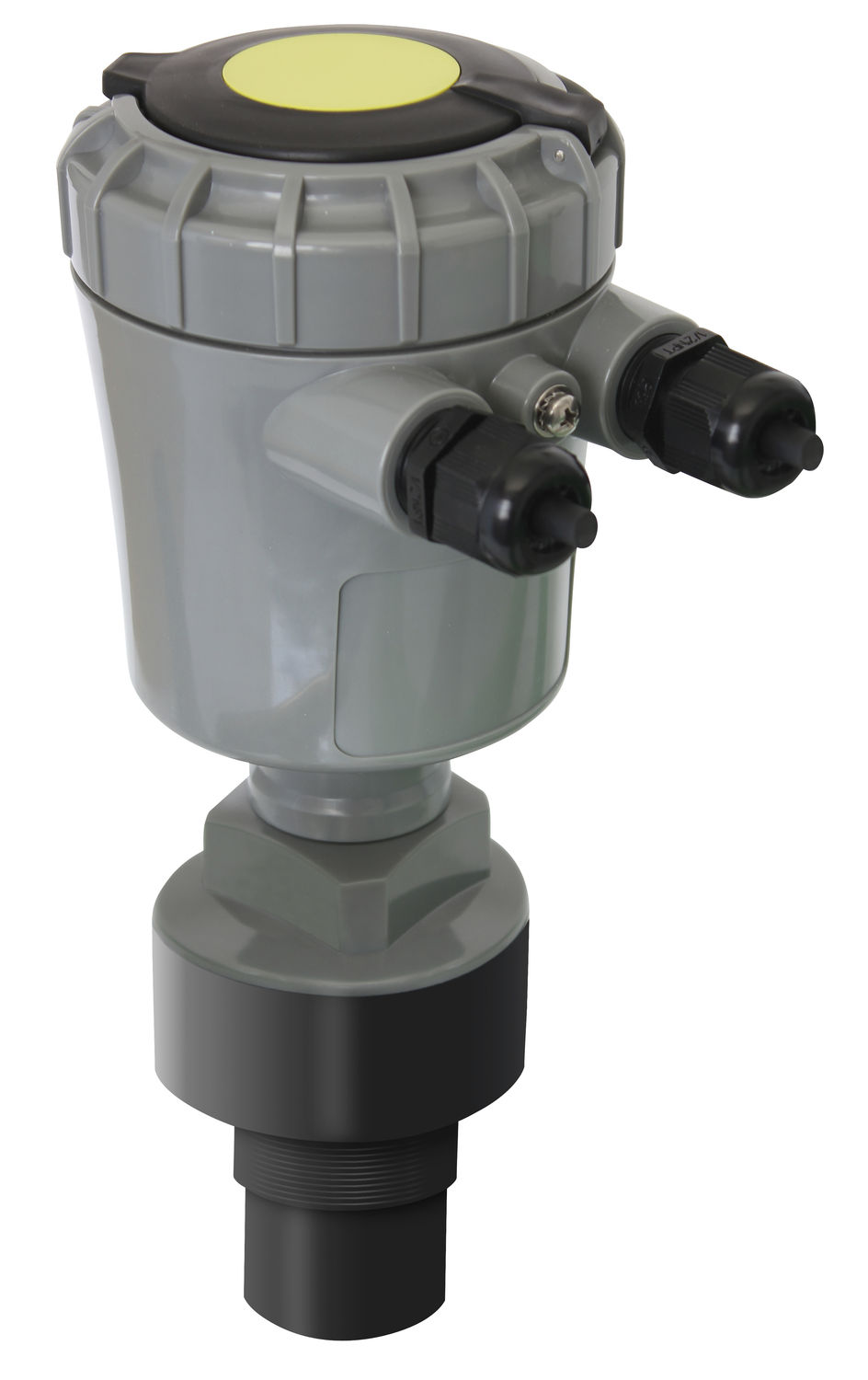

Ultrasonic level sensor
0.15 - 8 m, 6 - 26", 4 - 20 mA, HART, USB, PVDF, IP68 Solid Applied Technologies Ltd.

SPECIFICATION HIGHLIGHTS
(*) Compact, continuous, loop-powered, ultrasonic level meter.
(*) Interfaces: Analog 4-20 mA, optional HART and USB port.
(*) Optional graphic (64x128) display: 50x25mm2, keypad /sunshade.
(*) Range up to 8m (26') for liquids(1) and 5m (16') for solids.
(*) Resolution and repeatability 1mm (0.04").
(*) Accuracy 0.30% of measuring range or 1.5mm (0.06").
(*) Reporting distance, level, volume, temperature, operating hours.

A DURABLE 2-WIRE GAUGE
(*) PVDF sensor, superior in presence of aggressive chemicals.
(*) Plastic PC/ABS+UV, blending roughness and rigidity.
(*) Rated IP68 (1.8m deep /96 hr), withstanding rain/dust/snow.
(*) Operating temperature: -30° to +70°C (-22° to 158°F)
(*) Non-contact, ultrasonic technology, no moving parts: long-life.

ADVANTAGES and BENEFITS
(*) Extremely short "dead-zone" of 15 cm (6")
(*) High process tracking rate of 10m/min (32'/min).
(*) Flexible 4-20 / HART error indications.
(*) Liquid volume reported in Liters or Gallons.
(*) Automated temperature compensation for 2 temperature sensors.
(*) A friendly wizard-based setup or USB PC-based cloning.
(*) Advanced algorithms combating against:
Noises, temperature variations, unstable targets, gases
(*) No field calibration, minimal maintenance needs.


APPLICATIONS, MARKETS and PARTNERS
(*) Liquid targets, solids (grains) and Open Channel Flow (OCF).
(*) Storage vessels, process tanks and outdoor piles.
(*) Wastewater, water desalination, water treatmnet plants.
(*) Petrochemical, chemical, food and agriculture industries.
(*) OEM models and kit parts available to partners.
