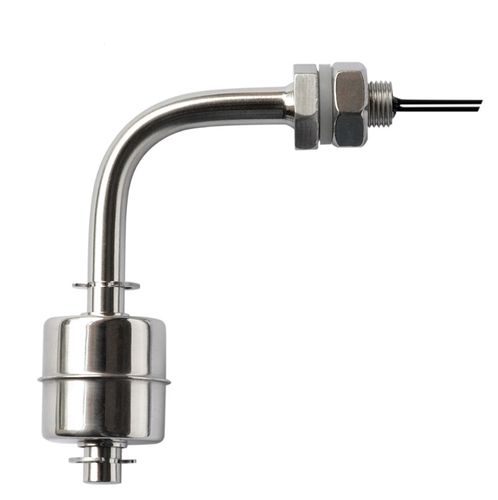

Magnetic float level switch SF132
for liquidsfor tankfor chemicals

magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
magnetic float level switch
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Medium
for liquids
Applications
for tank, for chemicals, for home appliances
Material
stainless steel
Mounting
threaded, horizontal
Other characteristics
reed switch, high-temperature, IP65
Process temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

Magnetic float-level switch principle is the float which link to rod equipped with a constant magnetic field, because of the liquid level rise or fall, make the float internal generated magnetic field , thus triggered the reed switch which inner the rod working. Widely used in liquid level measurement, liquid level alarm and level security control field. Features: - No standby power requirement - Customer can defined activated range and connection - Enclosure material: stainless steel 304 or 316 - High stability, high reliability, high consistenc Applications: - Level control, level measurement - Home appliance level detection - Water cooler, coffee machine, water dispenser, humidifier, etc - Container level detection
