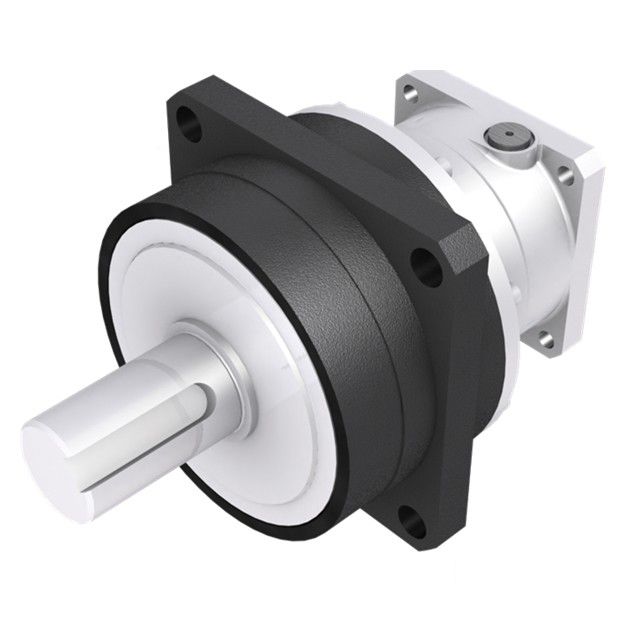

Precision planetary gear reducer
i= 5:1 - 81:1, max. 101 Nm | IB series
SUMITOMO (SHI) Cyclo Drive Germany GmbH
Precision planetary gear for servo-motor applications
3 sizes
3 output variants:
Output shaft without key
Output flange
Output shaft with key
Gear ratio: 1:5, 1:9 (single-stage), 1:15, 1:21, 1:33, 1:45, 1:81 (two-stage)
Output side hollow shaft with clamping ring
Circumferential backlash: 15 angular minutes (optional 3 angular minutes)
Especially compact design
Power: From 50 W to 1500 W, extended from 2 kW to 5 kW
Attachable to all standard servo-motors
