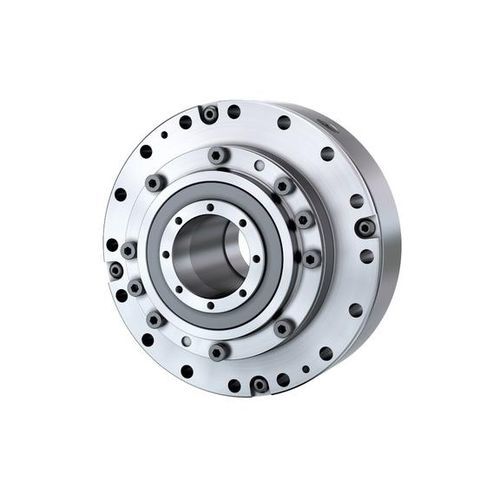

Cycloidal gear reducer E CYCLO
coaxial> 10 kNmprecision

cycloidal gear reducer
cycloidal gear reducer
Add to favorites
Compare this product


Characteristics

Type
cycloidal
Shaft orientation
coaxial
Torque
> 10 kNm
Performance
precision
Applications
shaft, transmission
Other characteristics
flange

Description

E CYCLO – Elastic Cyclo Shaft gear units with high rigidity for use in the smallest installation spaces High precision shaft gear with output flange and high rigidity The new E CYCLO series features high rigidity due to its internal roller bearings. This is significantly higher when compared to the competition. Therefore, the E CYCLO can achieve higher performance in a smaller design envelope and thus lower costs. High Rigidity Lost Motion 1.0 arcmin Transmission error 0.75 arcmin Maximum drive speed up to 8500 rpm Permissible torques up to 284 Nm Radial loads up to 2050 N Axial loads up to 3000 N Completely sealed including cross roller main bearing Sizes - 3 Reduction ratios - 50:1 to 100:1 (selectable in all sizes) Nominal output torque - 16 - 67 Nm (at n1 = 2000 rpm) Acceleration torque - 34 - 157 Nm Peak torque for emergency stop - 70 - 284 Nm Output speed - up to 170 rpm Max. axial load - 385 - 483 N Torsional stiffness - up to 15.9 Nm/arcmin
