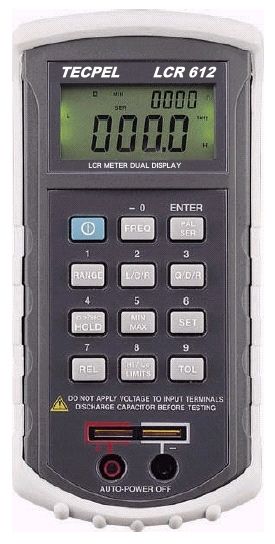

LCR meter
max. 20 mF, 1000 H | LCR-612
Tecpel Co., Ltd.
Features:
Basic accuracy: 0.5% for Resistance ;0.7% for Inductance, Capacitance
handheld lcr meter
Dual Displays provide quick tested results readouts,with L.C.R. Display values up to 19999 counts and Q.D.R. display values up to 9999 counts (Auto range)
Excellent resolutions: Resistance up to 0.001W, Inductance Capacitance up to 0.1uH/0.1pF
Provided up to 4 testing parameters:
Ls+(Q,D,Rs), Lp+(Q,D,Rp) ; Cs+(Q,D,Rs), Cp+(Q,D,Rp)
Auto-Power Off function:
To conserve battery life for longer use.
Fuse detection function:
To inform that the fuse is open or damaged.
PC communication port: (Only for Model LCR 612R ) Provide optical standard RS-232. cable
Basic accuracy: 0.5% for Resistance ;0.7% for Inductance, Capacitance
handheld lcr meter
Dual Displays provide quick tested results readouts,with L.C.R. Display values up to 19999 counts and Q.D.R. display values up to 9999 counts (Auto range)
Excellent resolutions: Resistance up to 0.001W, Inductance Capacitance up to 0.1uH/0.1pF
Provided up to 4 testing parameters:
Ls+(Q,D,Rs), Lp+(Q,D,Rp) ; Cs+(Q,D,Rs), Cp+(Q,D,Rp)
Auto-Power Off function:
To conserve battery life for longer use.
Fuse detection function:
To inform that the fuse is open or damaged.
PC communication port: (Only for Model LCR 612R ) Provide optical standard RS-232. cable
