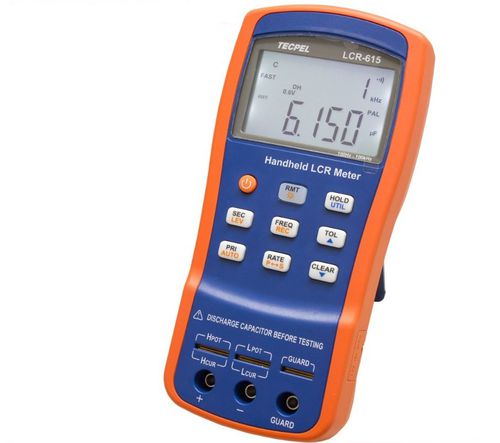

Portable LCR meter LCR-615

Specifications: ■ Max. Basic accuracy: 0.1% ■ Maximum test signal frequency : 100kHz Features: Handheld LCR Meter Test Frequency: 100Hz, 120Hz, 1KHz, 10K Hz , 100KHz 0.1 % Accuracy Features ■ Max. Basic accuracy: 0.1% ■ Maximum test signal frequency : 100kHz ■ Selectable test signal level ■ With DCR function ■ Enhanced protection capability of input terminal impact ■ 40000 counts for primary parameter, D/Q resolution 0.0001 ■ Typical ultra-low consumption: 25mA ■ Innovatively compatible terminal configuration: 5-terminal test slot and 3-terminal banana jack ■ Intellectualized auto LCR function ■ AC test speed up to 4 meas/sec (DCR: 3 meas/sec), fast automatic range switch design ■ Constant 100Ω output impedance ■ Percentage display and 4-tolerance comparator: 1/5/10/20% ■ Battery charge in startup & shutdown ■ Test terminal protection function ■ Data-hold, Max./Min./Average value recording ■ Real-time function configuration selection and working condition hold capacity ■ Standard configuration Mini – USB communication interface and SCPI command set ■ Free FastAccess PC communication software on our website ■ Gorgeous dual-color cast shell
