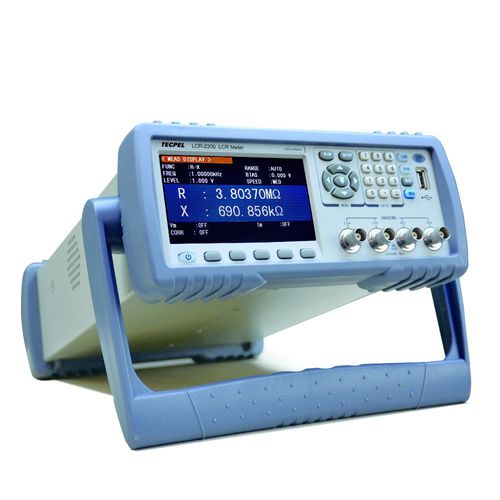

Benchtop LCR meter LCR-2200

portable

Adopting the new latest technology & high sophisticate circuit design and concentrating the essence of LCR test, TECPEL LCR-2000 series is a new generation compact LCR meter of low cost and high performance. Instead of using traditional mechanical power switch, it adopts software control one. The basic accuracy of 0.05% and good test stability can compare favorable with those high-end models. Being equipped with 4.3 inch TFT LCD Display and brand new interface system, TECPEL LCR- 2000 series LCR meters possess stylish outlook and easy operation.Also, being provided with various interfaces and good compatibility with SCPI commands, TECPL LCR-2000 series LCR meters are convenient for constituting all kinds of test system and satisfy various kinds of impedance demands for Quality Inspection, production and R&D scientific testing and research. Your best choice ! Model: LCR-2100/2200 50Hz-100kHz, 34 points / 20Hz-200kHz, 15025 points Basic measurement accuracy (See details in technical specification) LCRZ 0.05% DCR, turn ratio 0.1% Calibration condition Warm up time: ≥ 30 s Environment temperature:23±5ºC Signal voltage: 0.3Vrms – 1Vrms Zero clearing:after OPEN, SHORT Testing cable length: 0 m Test signal frequency LCR-2100/2200 50Hz-100kHz , 34points / 20Hz-200kHz, 15025 points Signal source output impedance Selectable 30Ω, 100Ω, ±1% @1kHz AC test signal level Normal 10mV~2Vrms (LCR-2100:50mV~1Vrms) Minimum resolution:10mV, Accuracy:10% x setting voltage+2mV 100μA~20mArms (LCR-2100:500μA~10mA rms) Minimum resolution: 0.1mA Constant level 20mV~1Vrms (LCR-2100:100mV~500mVrms)
