Digital multimeter DMM-8007Aportablefrequencyhigh-precision
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Additional features
- frequency
- Other characteristics
- high-precision
- Max DC voltage
1,000 V
- Max AC voltage
750 V
- Max DC current
20 A
- Max AC current
20 A
- Max resistance measure
200 mOhm
- Max capacity measure
200 µF
- Max frequency measure
20 MHz
Description

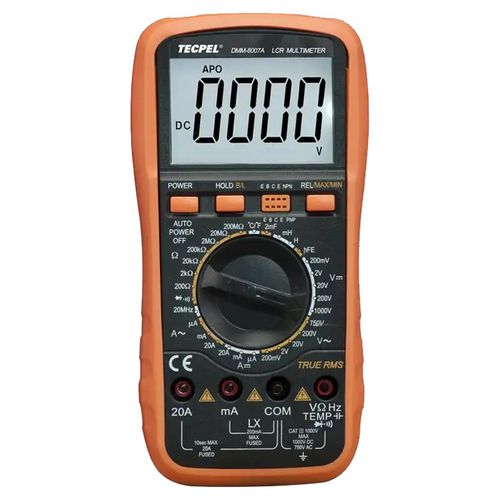

DMM-8007A is a handheld 1,999-digit multimeter with high accuracy and additional capacitance, frequency, logic testing, and transistor hFE testing. It is an ideal tool for professionals.
In addition to essential functions, DMM-8007A has capacitance, inductance, frequency, transistor hFE... and other test functions.
Measurement Specification
Digit Display: 1,999 Display
DC Voltage (DCV) : 200mV / 2V / 20V / 200V / 1,000V
DC Current (DCA) : 2mA / 20mA / 200mA / 20A
AC Voltage (ACV) : 200mV / 2V / 20V / 200V / 750V
AC Current (ACA) : 2mA / 20mA / 200mA / 20A
Frequency Response: 40~400Hz
Resistance (Ω) : 200 / 2k / 20k / 200k / 2M / 20M / 200M Ω
Capacitance : 20n / 200n / 2u / 20u / 200u F
Inductance: 2m / 20m / 200m / 2 / 20 H
Frequency: 10 / 100 / 1K / 10K / 100K / 1M / 20M Hz
Temperature : -20~1,000°C (0~1,832)
DC Voltage Deviation : ±((0.5%+3)
