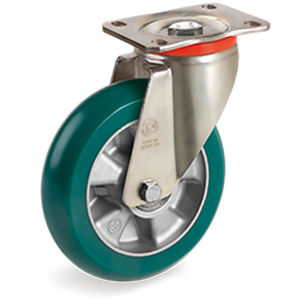

Swivel caster 62ER series

base platewith ergonomic profilefor trolleys

The round profile reduces the start-up coefficient when the castors are positioned at 90° from the line of movement and therefore reduces the amount of effort required by the operators when handling trolleys.Combined with appropriate brackets they guarantee excellent performance for mechanical handling up to 16 km/h. Typical usage: automotive and lean industries. TECHNICAL FEATURES WHEEL TREAD: TR-ROLL polyurethane with ergonomic round profile CENTRE: made of cast aluminium BRACKETS: M, P, EP, EE MHD, USAGE CONDITIONS Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
