Flange pressure relief valves
Controlled pressure: 315 bar
DN: 52 mm
Flow rate: 2,000 l/min
... of a system pressure. The pressure relief valves basically consist of the pilot control valve (1) with pressure adjustment element (2), main valve ...
Controlled pressure: 100 mbar - 1,000 mbar
DN: 10 mm - 50 mm
Essential product features: - Pressure-release valve with low opening pressure, standard 20 mbar, adjustable to 1,250 mbar overpressure - Spring-loaded operation - Straight body type - ...
Controlled pressure: 0 bar - 350 bar
DN: 6, 8 mm
Flow rate: 1 l/min - 150 l/min
Direct acting or differential poppet type relief valves. Flow rate from 1 to 150 l/min. Max working pressure 350 bar. Mounting: in-line or flange-mountedcartridge, ...
Controlled pressure: 8 bar
DN: 95 mm
Flow rate: 15,000 m³/h
The gas pressure regulator R101 is also available as a relief pressure valve for very small opening pressures R101US (e.g. for gas torches). For further ...
Controlled pressure: 2 mbar - 200 mbar
DN: 25 mm - 200 mm
The ELEVENT® pressure and vacuum relief valve provides optimum protection against overpressure and vacuum for tanks and vessels with low design pressures. It assures ...

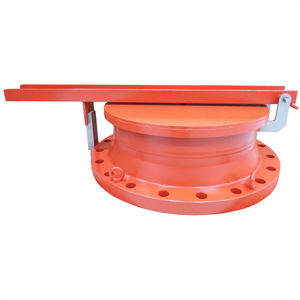

As emergency venting device for installation on storage tanks with a VRV to protect against hazardous excess pressure but minimize the loss of gas/vapours. Also suitable as replacement of a manhole. This device does not ...
... , VITON etc. Flanges : ANSI 150, drilled to UNI PN 10 on request. Dwg. 101/AA Valves : These valves are used when the setting values exceed 800 mm H20. Dwg. 101/AC Valves ...
Controlled pressure: 2 bar - 16 bar
DN: 50 mm - 150 mm
The valve keeps an inlet pressure (p1), set at the control valve, constant, irrespective of a fluctuating flow. If the inlet pressure (p1) exceeds the pre-set pressure, ...
Controlled pressure: 25 bar
DN: 15 mm - 100 mm
Self-regulating pressure relief valve for gas, air and steam. Indirect acting.
