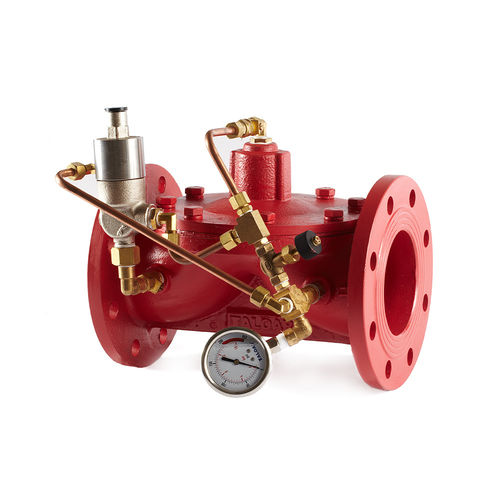

Water pressure relief valve RS300

DINfor pipelinesregulating

Precise pressure control Small volume and light weight Fast opening, to guarantee pipeline pressure Non-slam design, to prevent fluid impact Built-in strainer, to prevent the guide piping system from being blocked RS300 lightweight pressure relief valve/pressure holding/back pressure valve is a hydraulic control valve controlled by a pressure regulator, can maintain pressure in upstream pipelines, can be used in pressure relief, pressure holding and back pressure impact situations. During operation, the valve senses inlet pressure of the valve by the pressure regulator to control valve opening or closing. When inlet pressure exceeds the set value, the valve will open quickly to maintain pressure in the pipelines. After pressure release, the valve will close slowly to prevent impact. Pressure Regulator Parameters Pressure Regulating Range: 0.1~5 kgf/cm², 2~9 kgf/cm², 7~17 kgf/cm² Please Provide the Following Data When Ordering Valve figure number/size/pressure grade/connecting end type/pressure regulating range/other optional accessories Note: In valve installation, it is strongly suggested that sufficient space should be left for easy maintenance in the future. A strainer shall be mounted in front of the valve to prevent foreign matters from blocking the valve. List of Accessories ① Strainer ② Ball Valve ③ Needle Type Regulating Valve ④ Ball Valve ⑤ Pressure Relief Valve ⑥ Ball Valve ⑦ Body
