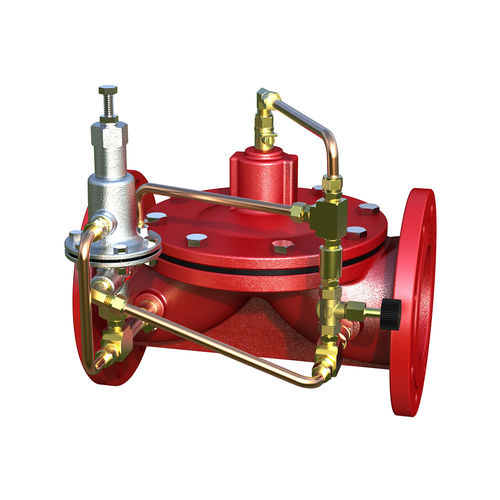

Water pressure relief valve DR300

DINfor pipelinesregulating

Precise differential pressure control Small volume and light weight Large flow Reliable full hydraulic control Tight and reliable sealing performance in closing Built-in strainer, to prevent the guide piping system from being blocked DR300 lightweight pressure differential relief valve is a fully automatic hydraulic control valve, designed to maintain pressure differential between two pipelines, to avoid the pressure differential of pipelines exceeding the range the system can hold due to other valves operation or demand change. The valve will open when the pressure differential increases and will automatically close when the differential pressure decreases. If the optional check feature is selected, back pressure is generated, the return fluid will enter the air chamber to close the valve to prevent the fluid from back flow. Pressure Regulator Parameters Pressure Regulating Range: 0.1~2.5 kgf/cm², 2~9 kgf/cm², 7~17 kgf/cm² Please Provide the Following Data When Ordering Valve figure number/size/pressure grade/connecting end type/pressure regulating range/other optional accessories Note: In valve installation, it is strongly suggested that sufficient space should be left for easy maintenance in the future. A strainer shall be mounted in front of the valve to prevent foreign matters from blocking the valve.
