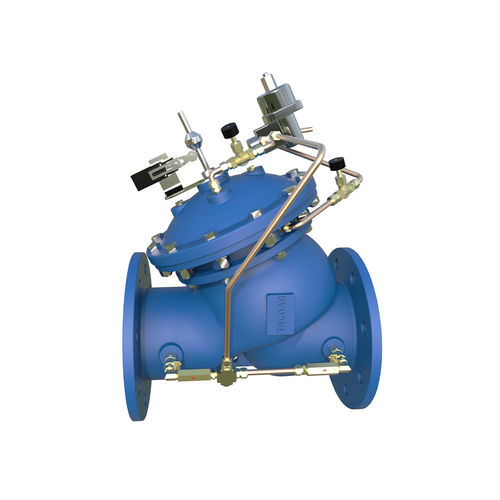

Control valve PF500

manualblockingfor water

Separately controllable opening and closing speed Manual operated electromagnetic control switch available. Excellent and reliable sealing performance Easy operation and maintenance Built-in strainer, to prevent the guide piping system from blocking The pump control valve is installed at the pump outlet, controlled by the guide pipe to eliminate the impact of the fluid on the pipelines during pump start-up or power-off. At pump start-up, the control valve is in closed state. After the start-up, the electromagnetic control switch is powered on; the valve will open gradually; the pressure in the pipeline rises slowly until the working head of the pump is reached. When the pump receives the shutdown signal, the electromagnetic control switch will power off; the valve will start to close gradually; the flow in the pipeline gradually reduces while the water pump is still working. When the valve is fully closed, the limit switch installed on the valve will form an electronic interlocking relationship with the pump to cancel the pump start-up command, the pump stops. Solenoid Valve Parameters Voltage Range: 110 V, 50~60 Hz, AC or 220 V, 50-60Hz, AC Please Provide the Following Data When Ordering Valve figure number/size/pressure grade/connecting end type/voltage range/other optional accessories Note: In valve installation, it is strongly suggested that sufficient space should be left for easy maintenance in the future. A strainer shall be mounted in front of the valve to prevent foreign matters from blocking the valve.
