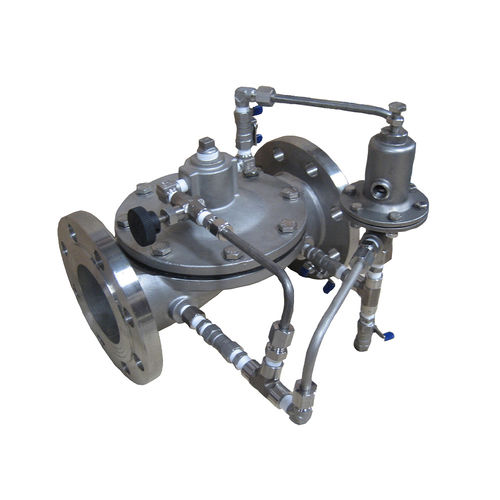

Water pressure relief valve RS300S

DINfor pipelinesstainless steel

Precise pressure control Small volume and light weight Fast opening, to guarantee pipeline pressure Non-slam design, to prevent fluid impact Built-in strainer, to prevent the guide piping system from being blocked RS300S lightweight pressure relief valve/pressure holding/back pressure valve is a hydraulic control valve controlled by a pressure regulator. It maintains pressure in upstream pipelines and also can be used in pressure relief, pressure holding and back pressure situations. During operation, the valve senses inlet pressure of the valve by the pilot pressure regulator to control the valve to open or to close. When inlet pressure exceeds the set value, the valve will open quickly to maintain pressure in the pipelines. After pressure release, the valve will close gradually to prevent impact. Pressure Regulator Parameters Pressure Regulating Range: 0.1~5 kgf/cm², 2~9 kgf/cm², 7~17 kgf/cm² Please Provide the Following Data When Ordering Valve figure number/size/pressure grade/connecting end type/pressure regulating range/other optional accessories Note: In valve installation, it is strongly suggested that sufficient space should be left for easy maintenance in the future. A strainer shall be mounted in front of the valve to prevent foreign matters from blocking the valve.
