Safety pressure relief valve P1205
for vacuumflange

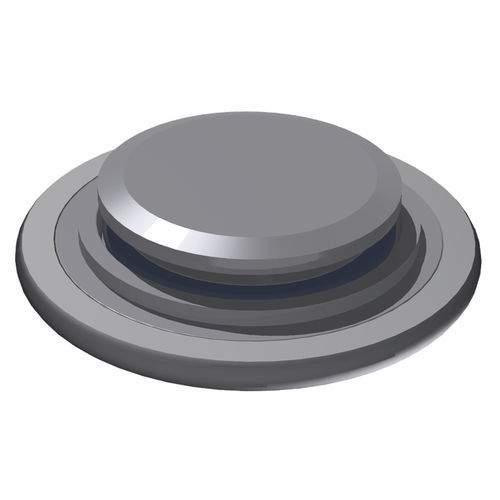

Safety pressure relief valve - P1205 - Socrate Industrie - for vacuum / flange

Safety pressure relief valve - P1205 - Socrate Industrie - for vacuum / flange - image - 2

Add to favorites

Compare this product

Go to the Socrate Industrie website for more information

Characteristics

Applications

for vacuum

Other characteristics

flange, safety

DN

16 mm, 25 mm, 40 mm
(0.63 in, 0.984 in, 1.575 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 1 bar
(14.5 psi)

Weight

Min.: 0.02 kg
(0.04 lb)

Max.: 0.32 kg
(0.71 lb)

Description

Product overview
This exhaust / pressure relief valve prevents the pressure inside a vacuum chamber from exceeding its setpoint by opening to relieve excess pressure. It is intended for integration on vacuum chambers and vacuum process equipment and is supplied as a metal circular assembly with multiple mounting holes.

Features

Pressure relief functionality to protect vacuum chambers and process integrity
Designed specifically for vacuum applications and low-pressure environments
Metal circular assembly with multiple mounting holes as shown in product imagery for flange installation
Simplified mounting on chamber flanges to facilitate replacement or retrofit
Compact design minimizing intrusion into the vacuum volume

Documentation
Available downloadable technical documentation (PDF): Soupape-de-sécurité.pdf — includes dimensional drawings and mounting pattern.

Technical specifications

Type: Exhaust / pressure relief valve for vacuum systems
Function: Ensures chamber pressure does not exceed setpoint by venting excess pressure
Applications: Vacuum chambers, vacuum process equipment and related installations
Manufacturer: Socrate Industrie
Documentation: Soupape-de-sécurité.pdf
