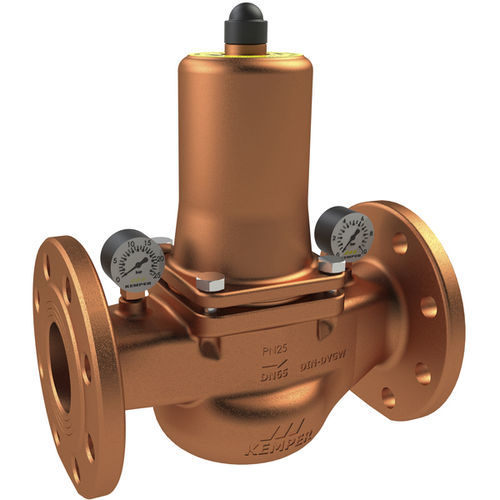

DIN pressure relief valve 711 00 seriesplugflangestainless steel
Add to favorites
Compare this product
Characteristics
- Connexion
- DIN
- Other characteristics
- plug, flange, stainless steel, adjustable
- DN
65 mm, 80 mm
(2.559 in, 3.15 in)- Flow rate
33 m³/h, 43 m³/h
(1,165.38 ft³/h, 1,518.53 ft³/h)- Pressure
25 bar
(362.6 psi)- Weight
19.72 kg, 21.2 kg
(43.48 lb, 46.74 lb)
Description
single-seated valve with balanced plug
gunmetal housing, interior parts made of gunmetal and stainless steel
full metal version
easy to maintain
outlet pressure adjustable on lockable knurl with pressure scale
with stainless steel mesh at inlet
flange connection
for any installation position
incl. manometer for inlet and outlet pressure
maintenance requirements in accordance with DIN EN 806-5 must be complied with
Standards and Approvals
DVGW approval
plastic parts with KTW and W 270 approval
according to accepted materials list from German environmental agency
DIN EN 1092 / EN 1567 / DIN EN 558-1
Technical Data
pressure rating PN 25 (DN 80 only, DN 65: PN 16)
max. operating temperature 90 °C
min. outlet pressure 0.1 MPa
max. outlet pressure 0.7 MPa
factory setting 0.4 MPa
