Programmable linear encoders

Length: 170 mm - 6,000 mm
Resolution: 0.1 µm - 5 µm
Process temperature: -20 °C - 80 °C

... for a constant accuracy at any temperature. Particularly suitable for applications on synchronized press brakes. Option: Line Driver digital signal. Transducer guided by a self-aligned and self-cleaning sliding carriage with spring ...

Length: 170 mm - 720 mm
Resolution: 0.1, 1 µm
Process temperature: -20 °C - 70 °C

... applications on synchronized press brakes. High-speed SSI-BiSS C (unidirectional) serial interface. Option: 1 Vpp analog signal or Line Driver digital signal. Reader head guided by a self-aligned and self-cleaning sliding carriage ...

Resolution: 0.5 µm - 250 µm
Process temperature: -20 °C - 70 °C

... New line of magnetic sensors MTS, with small overall dimensions. DPI resolution and inches reading now available. Many pole pitches available. Wide alignment tolerances and sensor/magnetic band distance up to 12 mm, for an even easier ...

Length: 0 mm - 30,000 mm
Resolution: 1 µm - 500 µm
Process temperature: -20 °C - 70 °C

... Linear magnetic sensor, with direct reading of the absolute position. High performance, with a measuring length up to 30,000 mm. Resolutions up to 1 μm and repeatability ± 1 increment. Extremely easy and fast mounting of the entire ...

Length: 170 mm - 30,000 mm
Resolution: 1 µm - 500 µm
Process temperature: -20 °C - 70 °C

... Magnetic scale with pole pitch 2+2 mm and direct reading of the absolute position. Particularly suitable for applications on synchronized press brakes. High-speed SSI-BiSS C (unidirectional) serial interface. Option: 1 Vpp analog signal. Reader head ...

Linear encoder speed: 0 m/s - 64 m/s
Output frequency: 0 kHz - 2,000 kHz
Process temperature: -10 °C - 85 °C

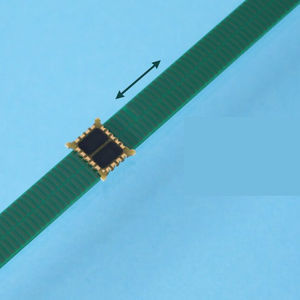

... oil grease, liquids, dust, particles - Programmable resolution and max speed - Optional with holder, cable and connector The ID4506L incremental encoder kit consists of an encoder and a linear ...

Resolution: 20 nm
Linear encoder speed: 0 m/s - 30 m/s
Output frequency: 0 MHz - 1 MHz

... against oil grease, liquids, dust, particles Programmable resolution and max speed Optional with holder, cable and connector The ID1102L incremental encoder kit consists of an encoder and a linear ...

Resolution: 20 nm
Linear encoder speed: 0 m/s - 30 m/s
Output frequency: 0 MHz - 1 MHz

... grease, liquids, dust, particles • Programmable resolution and max speed • Optional with holder, cable and connector The ID4501L incremental encoder kit consists of an encoder and a linear ...

Resolution: 20 nm
Linear encoder speed: 0 m/s - 36 m/s
Output frequency: 0 MHz - 1.2 MHz

... oil grease, liquids, dust, particles Programmable resolution and max speed Optional with holder, cable and connector The IT3402L incremental encoder kit consists of an encoder and a linear ...

Resolution: 20 nm
Linear encoder speed: 0 m/s - 36 m/s
Output frequency: 0 MHz - 1.2 MHz

... oil grease, liquids, dust, particles Programmable resolution and max speed Optional with holder, cable, and connector The IT5602L incremental encoder kit consists of an encoder and a linear ...

Length: 146 mm

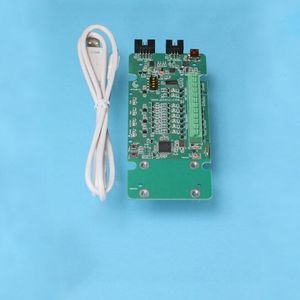

... Interface Board Interface Board Up to 5 encoders, mounted on holder and with 30 cm cable and connector Depending on the type of encoder selected ( linear or rotary or gearwheel), the EPT002 includes ...
