High-speed linear encoders

Length: 100 mm
Resolution: 244 nm - 250,000 nm

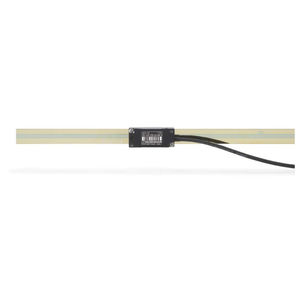

The LM10 is a contactless high-speed magnetic encoder designed for linear or rotary motion sensing in harsh environments. The LM10 features a compact sealed readhead ...

Length: 50 m
Resolution: 244 nm - 250,000 nm

The LM13 is a contactless high-speed linear magnetic system designed for linear or rotary motion sensing in harsh environments. The system consists of a compact readhead ...

Length: 100 m
Resolution: 610 nm - 625,000 nm

The LM15 is a contactless high-speed magnetic encoder designed for linear or rotary motion sensing in harsh environments. The LM15 features a compact sealed readhead ...

SME9 high-speed incremental encoder for linear and rotary applications SME9 high-speed incremental encoder from Lika ...

Resolution: 0.1 mm

Wire-Type Linear Scale Absolute Encoders The EWLS50 series wire type linear scale absolute encoders feature a maximum measurement range of 512 mm with resolution of ...

Resolution: 0.01 µm - 0.1 µm
Linear encoder speed: 0 mm/s - 400 mm/s
Process temperature: 10 °C - 30 °C

High-speed and high-resolution, while maintaining stable, ultraprecision measuring. Ideal for precision stages, semiconductor inspection/manufacturing systems, and ultraprecision ...

Length: 70 mm - 3,770 mm
Resolution: 0.01 µm
Linear encoder speed: 200 mm/min

SQ57 linear encoder for CNC machines Very robust against contamination because of magnetic principle Robust design for high resistance against shock and vibration Contactless sensor ...

Length: 200 mm - 30,000 mm
Resolution: 2 µm
Linear encoder speed: max 5.0 m/s

SL331 Linear encoder tape scale Non-contact, detection and a high response speed Magnetic principle Excellent resistance to workshop conditions (IP67) Resistant ...

Length: 170 mm - 720 mm
Resolution: 0.1, 1 µm
Process temperature: -20 °C - 70 °C

... double-effect joint or steel wire. An adapter guarantees the compatibility with PBS-HR scale. High accuracy and stability of signals even in case of high speed, strong accelerations ...

Length: 70 mm - 3,240 mm
Resolution: 0.1 µm - 1 µm
Process temperature: -20 °C - 70 °C

... machining. Metrological certificate provided with each scale. Linear thermal expansion coefficient λ = 8 x 10-6 °C-1. High accuracy and stability of signals even in case of high speed, ...

Length: 170 mm - 6,000 mm
Resolution: 0.1 µm - 5 µm
Process temperature: -20 °C - 80 °C

... the absolute position. High mechanical resistance and thermal expansion suitable for the application, for a constant accuracy at any temperature. Particularly suitable for applications on synchronized press brakes. High-speed ...

Resolution: 20 nm
Linear encoder speed: 30 m/s
Output frequency: 0 MHz - 1 MHz

... liquids, dust, particles Programmable resolution and max speed Optional with holder, cable and connector The ID1102L incremental encoder kit consists of an encoder and a linear ...

Resolution: 20 nm
Linear encoder speed: 30 m/s
Output frequency: 0 MHz - 1 MHz

... , dust, particles • Programmable resolution and max speed • Optional with holder, cable and connector The ID4501L incremental encoder kit consists of an encoder and a linear ...

Resolution: 37 nm
Linear encoder speed: 11 m/s
Output frequency: 0 MHz - 1 MHz

... liquids, dust, particles Programmable resolution and max speed Optional with holder, cable, and connector The IT5602L incremental encoder kit consists of an encoder and a linear ...

Output frequency: 16 kHz
Process temperature: -40 °C - 125 °C

The M-Sense16 magnetic encoder features the latest in chip technology, providing a high degree of accuracy ideal for applications requiring accurate positioning and closed loop motion feedback. The M-Sense16 ...
