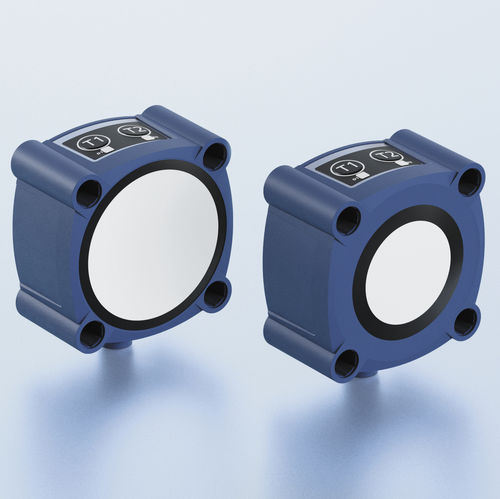

The lcs+ ultrasonic sensors
have a block-like plastic housing with a base area of only 62.2 x 62.2 mm and four fastening bores.
The sensors are Listed to applicable UL Standards and requirements by UL for Canada and the US.
Very compact housing dimensions only 62.2 mm x 62.2 mm x 36.7 mm
IO-Link interface for support of the new industry standard
Synchronisation and multiplex mode for simultaneous operation of up to ten sensors in close quarters
8 m maximum detection range
UL Listed to Canadian and US safety standards
1 Push-Pull switching output, or 2 pnp switching outputs
Analogue output 4–20 mA and 0–10 V with automatic switching between current and voltage outputs
microsonic Teach-in by using button T1 and T2
0.18 mm to 2.4 mm resolution
9–30 V operating voltage
LinkControl for configuration of sensors from a PC
