ステッピングエンジンコマンド DM542

BLDC2相ステッピング

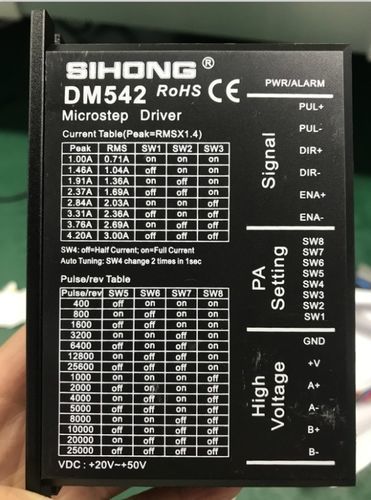

Product Overview:Drive for 4-wire and 8-wire two-phase stepper motors.Voltage input range: 20-50 VDCMaximum current: 4.2ASubdivision range: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power-on parametersPrecision current control reduces the heating of the motorElectrical Index:Power Interface:Dial Code Setting:Operating current settingCategory: 2-phase stepper motor, stepper motor driverTags: BLDC motor, closed loop motor, DC servo motor, driver, stepper motor, stepper motor driverTechnical Specifications:Drive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-50 VDCMaximum current: 4.2ASubdivision range: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power-on parametersPrecision current control to reduce motor heating
