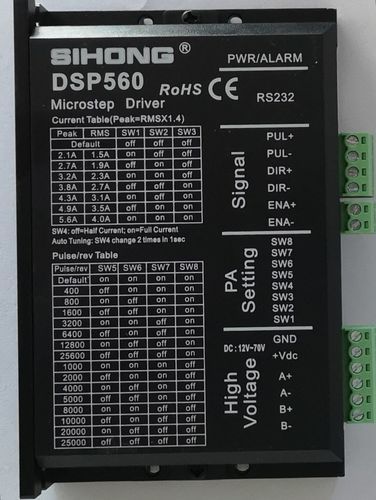

2相ステッピングエンジンコマンド DSP560

Drive 4-wire, 8-wire two-phase stepper motor.Voltage input range: 20-60VDCCurrent maximum: 5.6ASignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatible.Automatic setting of power on parameters.Precision current control reduces the heating of the motor.Electrical indexStrong electric interfaceWorking (dynamic) current settingDriver control Wiring DiagramDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-60VDCMaximum current: 5.6ASignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatibleAutomatic setting of power on parametersPrecision current control to reduce motor heating
