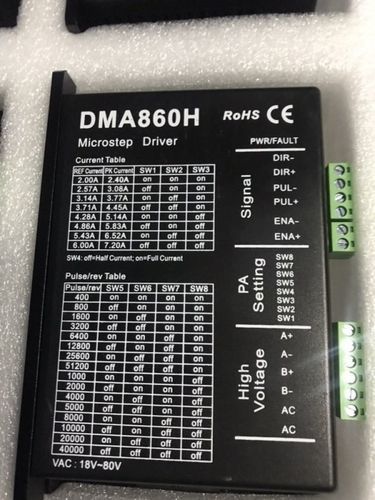

ステッピングエンジンコマンド DMA860H

直流BLDC2相ステッピング

Product Details:Drive: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-110VAC 7ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motorElectrical indexInterface definitionDriver signal mode settingThe DMA860H driver’s signal mode is set by 3 jumpers on the PCB board.Driver wiring diagramCategory: 2-phase stepper motor, stepper motor driverTags: BLDC motor, closed loop motor, DC servo motor, driver, stepper motor, stepper motor driverTechnical Specifications:Model: DMA860HDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input: 20-110VAC, 7ASubdivision range: 400~40000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC compatiblePulse response frequency: 200KHzAutomatic parameter setting at power onPrecision current control
