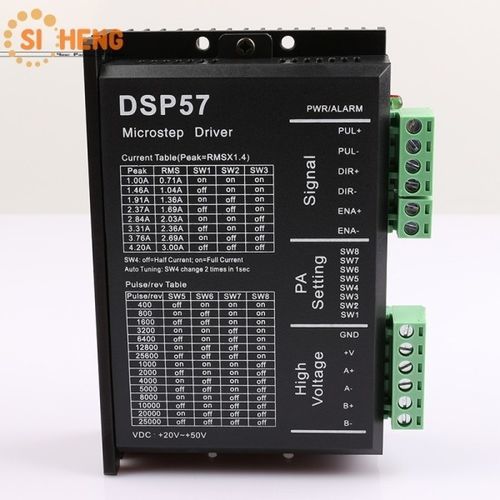

2相ステッピングエンジンコマンド DSP57

Product OverviewDrive: 4-wire, 8-wire two-phase stepper motorVoltage input range: 20-60VDCMaximum current: 4.2ASubdivision range: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motorElectrical IndexPower InterfaceDriver Signal Mode SettingDriver Wiring DiagramCategory: 2-phase stepper motor, stepper motor driverTag: stepper motor driverTechnical Specifications / FeaturesDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input: 20-60VDCMax current: 4.2ASubdivision: 400~25000pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC compatiblePulse response frequency: 200KHzAutomatic parameter setting at power onPrecision current control to reduce motor heating
