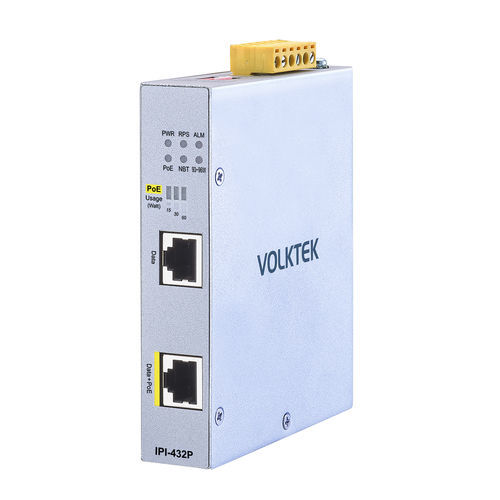

IEEE 802.3btPoEインジェクター IPI-432P-60-I

DINレールIP30

Product FeaturesOne 10/100/1000 Base-T RJ45 portOne 10/100/1000 Base-T PSE portMaximum power supply: 60W PoE++ (IEEE 802.3 bt)LED indicators for use and safety: Power, RPS, ALM, PoE, NBT, Power ConsumptionIP30 metal housingOperating temperature range: -40°C~75°C (-40°F~167°F)* Maximum operating temperature range by UL: -40°C~70°C (-40°F~158°F)Product OverviewThe IPI-432P-60-I is a single-port PoE++ industrial power injector that supplies data and up to 60W of power to powered devices (PD) via Cat-5e or Cat-6 Ethernet cables. It supports multiple data transfer rates of 10/100/1000Mbps and can supply up to 60 watts of power. This device is ideal for innovative PoE-based lighting systems and supports the realization of new smart buildings where all devices are connected to the vast Internet of Things (IoT). The IPI-432P-60-I features a fanless design for quiet operation and can be easily deployed for smart lighting and other network communication devices in ceilings or outdoor cabinets. Equipped with LED indicators, it notifies users of real-time power usage and warns when safety limits are exceeded. The IPI-432P-60-I is designed to withstand harsh industrial environments and is housed in a high thermal conductivity IP30 aluminum case, which firmly protects the device from tools and external hazards. It can operate in a wide temperature range from -40°C to 70°C (-40°F to 158°F). To ensure reliable operation of connected devices, it is equipped with a redundant power system and relay alarm, alerting users in the event of a power failure.FunctionsEasy and quick installation / Plug and PlayEquipped with MDI/MDI-X function, allowing the injector and PoE-enabled devices to mutually adjust the optimal amount of energy during transmission.LED indicators for power usage: The interface of the IPI-432P-60-I allows easy identification of the amount of power consumed, enabling quick reboot of powered devices (PD) as needed. It is also possible to reboot the PD if the power exceeds safe levels. The power usage LED indicators light up according to the power consumption (15W, 30W, 60W), providing clear visual feedback to users.Compact size and robust components: With a compact and lightweight design and industrial-grade durability, the IPI-432P-60-I offers flexibility for users to freely place the injector for various functional devices.DIP switch: Includes a DIP switch for easy control of hardware functions, allowing users to quickly change specific settings or functions.SpecificationsStandards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE, 4-pair PoE)Interface: Ports: 1 x 10/100/1000 Base-T RJ45 port, 1 x 10/100/1000 Base-T PSE port (60W)DIP Switch: PWR, RPS, NBT, RSVLED Panel: PWR, RPS, ALM, PoE, NBT, 63~66W, PoE Usage (15,30,60)Power: Input Voltage: Dual 24~57V DC, Terminal BlockPower Consumption: 7 Watt (System Only)PoE Mode: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE), IEEE 802.3bt (Type 4)PoE Type: MidSpanPoE Budget: 60WAlarm Relay: One relay output with current carrying capacity of 1A@ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection)Mounting: DIN RailOperating Temperature: -40°C~70°C (-40°F~158°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating Humidity: 5~95% RH (non-condensing)Storage Humidity: 5~95% RH (non-condensing)Weight: 385 g (0.85 lb)Dimension (WxHxD): 25 x 116 x 100 mm (0.98 x 4.57 x 3.93 in)ModelDescriptionIPI-432P-60-IIndustrial Gigabit 60W PoE Injector*Specifications subject to change without prior notice.One 10/100/1000 Base-T RJ45 portOne 10/100/1000 Base-T PSE portMaximum power supply: 60W PoE++ (IEEE 802.3 bt)LED indicators for use and safety: Power, RPS, ALM, PoE, NBT, Power ConsumptionIP30 metal housingOperating temperature range: -40°C~75°C (-40°F~167°F)UL maximum operating temperature range: -40°C~70°C (-40°F~158°F)Fanless designDIN Rail mountingRedundant Power SystemAlarm RelayWeight: 385 g (0.85 lb)Dimensions: 25 x 116 x 100 mm (0.98 x 4.57 x 3.93 in)
