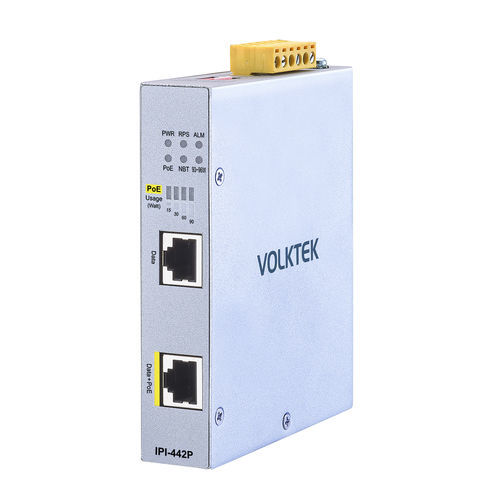

IEEE 802.3btPoEインジェクター IPI-442P-90-I

DINレールIP30

Product FeaturesOne 10/100/1000 Base-T RJ45 portOne 10/100/1000 Base-T PSE portMaximum power supply: 90W PoE++ (IEEE 802.3 bt)LED indicators for use and safety: Power, RPS, ALM, PoE, NBT, Power ConsumptionIP30 metal housingOperating temperature range: -40°C~75°C (-40°F~167°F)* Maximum operating temperature range by UL: -40°C~70°C (-40°F~158°F)Product OverviewThe IPI-432P-90-I (90W) is a single-port PoE++ industrial power injector that supplies data and power to powered devices (PD) via Cat-5e or Cat-6 Ethernet cables. It supports data transmission at multiple rates of 10/100/1000Mbps and delivers up to 90 watts of power. This device is ideal for innovative PoE-based lighting systems and contributes to the construction of new smart buildings connected to the Internet of Things (IoT). The IPI-432P-90-I features a fanless design, allowing easy deployment of smart lighting and network communication devices on ceilings or outdoor cabinets. LED indicators enable real-time monitoring of power usage and alert users when safety limits are exceeded. To withstand harsh industrial environments, it is housed in a high thermal conductivity IP30 aluminum case, protecting the device from tools and hazards. The operating temperature range is -40°C to 70°C (-40°F to 158°F), and it is equipped with a redundant power system and relay alarm function to ensure stable operation of connected devices.FunctionsEasy and quick installation / Plug and PlayEquipped with MDI/MDI-X function, the injector and PoE-enabled devices can mutually adjust the optimal amount of energy during transmission.LED indicators for power usageThe interface of the IPI-442P-90-I allows easy identification of the amount of power consumed, enabling quick reboot of powered devices (PD) as needed. It is also possible to reboot the PD if the power exceeds safe levels. The power usage LED indicators light up according to the power consumption (15W, 30W, 60W), providing clear visual feedback to users.Compact size and robust componentsWith its compact size, lightweight design, and industrial-grade durability, the IPI-442P-90-I offers users the flexibility to freely place the injector for various functional devices.SpecificationsStandards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (4PPoE, 4-pair PoE)Interface: Ports: 1 x 10/100/1000 Base-T RJ45 port, 1 x 10/100/1000 Base-T PSE port (90W)DIP Switch: PWR, RPS, NBT, RSVLED Panel: PWR, RPS, ALM, PoE, NBT, 93~96W, PoE Usage (15,30,60,90)Power: Power Input: Dual 24~57V DC, Terminal BlockPower Consumption: 9 Watt (System Only)PoE Mode: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE), IEEE 802.3bt (Type 4)PoE Type: MidSpanPoE Budget: 90WAlarm Relay: One relay output with current carrying capacity of 1A@ 24V DCMechanical and Environment: Housing: Aluminum (IP30 Protection)Mounting: DIN RailOperating Temperature: -40°C~75°C (-40°F~167°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating Humidity: 5~95% RH (non-condensing)Storage Humidity: 5~95% RH (non-condensing)Weight: 385 g (0.85 lb)Dimension (WxHxD): 25 x 116 x 100 mm (0.98 x 4.57 x 3.93 in)ModelDescriptionIPI-432P-90-IIndustrial Gigabit 90W PoE Injector*Specifications subject to change without prior notice.One 10/100/1000 Base-T RJ45 portOne 10/100/1000 Base-T PSE portMaximum power supply: 90W PoE++ (IEEE 802.3 bt)LED indicators for use and safety: Power, RPS, ALM, PoE, NBT, Power ConsumptionIP30 metal housingOperating temperature range: -40°C~75°C (-40°F~167°F)Maximum operating temperature range by UL: -40°C~70°C (-40°F~158°F)Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (4PPoE, 4-pair PoE)Power Input: Dual 24~57V DC, Terminal BlockPower Consumption: 9 Watt (System Only)PoE Budget: 90WAlarm Relay: One relay output with current carrying capacity of 1A@ 24V DCHousing: Aluminum (IP30 Protection)Mounting: DIN RailWeight: 385 g (0.85 lb)Dimension (WxHxD): 25 x 116 x 100 mm (0.98 x 4.57 x 3.93 in)
