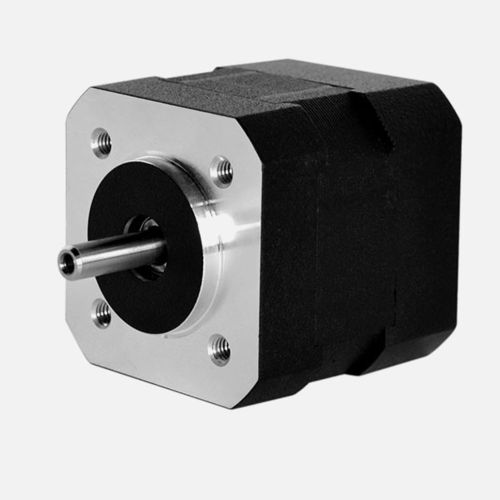

Brushless motor 42BSA seriesthree-phase24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, three-phase
- Voltage
- 24 V, 12 V, 48 V, 36 V, 18 V
- Number of poles
- 8-pole
- Power
Min.: 8.3 W
(0.01 hp)Max.: 100 W
(0.14 hp)- Torque
0.08 Nm, 0.16 Nm, 0.24 Nm
(0.059005 ft.lb, 0.11801 ft.lb, 0.177015 ft.lb)- Rotational speed
1,000 rpm, 3,000 rpm, 4,000 rpm
(6,283.1853 rad.min-1, 18,849.5559 rad.min-1, 25,132.7412 rad.min-1)
Description
GENERAL SPECIFICATION
Winding type：YWE
Hall effect angle：120 Deg. Electrical angle
Radial play：0.02mm /460g
End play：0.02mm /400g
Max. radial force：15N @ 10mm from the flange
Max. axial force：10N
Insulation class：B
Dielectric strength：500VDC for one minute
Insulation resistance：100MΩ min., 500VDC
