Brushless motor 57BYA series
three-phase24 V12 V

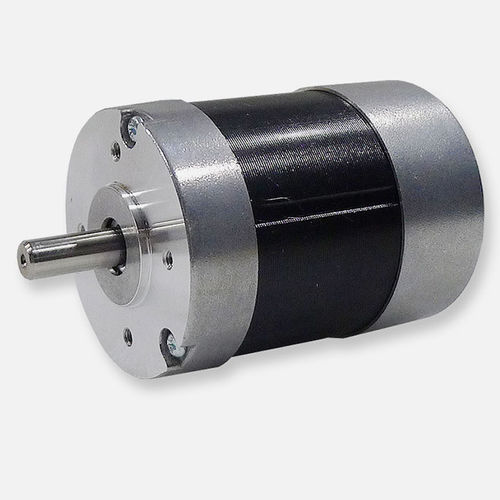

Brushless motor - 57BYA series - 3X MOTION TECHNOLOGIES CO.,LTD. - three-phase / 24 V / 12 V
Brushless motor - 57BYA series - 3X MOTION TECHNOLOGIES CO.,LTD. - three-phase / 24 V / 12 V
Add to favorites
Compare this product
Go to the 3X MOTION TECHNOLOGIES CO.,LTD. website for more information

Characteristics

Type
brushless, three-phase
Voltage
24 V, 12 V, 48 V, 36 V, 18 V, 60 V, 80 V, 70 V
Number of poles
4-pole
Power

Min.: 33.5 W
(0.05 hp)

Max.: 251 W
(0.34 hp)

Torque

0.08 Nm, 0.16 Nm, 0.32 Nm, 0.45 Nm, 0.6 Nm
(0.059005 ft.lb, 0.11801 ft.lb, 0.23602 ft.lb, 0.331903 ft.lb, 0.442537 ft.lb)

Rotational speed

2,000 rpm, 4,000 rpm, 6,000 rpm
(12,566.3706 rad.min-1, 25,132.7412 rad.min-1, 37,699.1118 rad.min-1)

Description

GENERAL SPECIFICATION Winding type：Delta Hall effect angle：120 Deg. Electrical angle Radial play：0.025mm /460g End play：0.025mm /400g Max. radial force：75N @ 20mm from the flange Max. axial force：15N Insulation class：B Dielectric strength：500VDC for one minute Insulation resistance：100MΩ min., 500VDC
