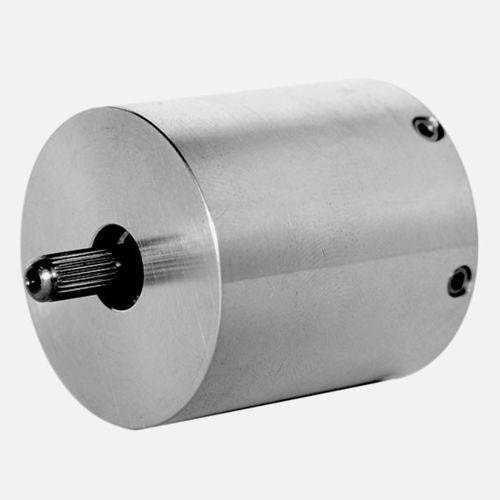

Brushless motor 33BYA seriesthree-phase24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, three-phase
- Voltage
- 24 V, 12 V, 18 V
- Number of poles
- 4-pole
- Power
18.5 W, 25 W
(0.03 hp, 0.03 hp)- Torque
0.0118 Nm
(0.008703 ft.lb)- Rotational speed
Max.: 20,000 rpm
(125,663.7061 rad.min-1)15,000 rpm, 20,000 rpm
(94,247.7796 rad.min-1, 125,663.7061 rad.min-1)Min.: 4,000 rpm
(25,132.7412 rad.min-1)
Description
GENERAL SPECIFICATION
Winding type：YWE
Hall effect angle：120 Deg. Electrical angle
Radial play：0.02mm /450g
End play：0.08mm /450g
Max. radial force：2N @ 10mm from the flange
Max. axial force：10N
Insulation class：B
Dielectric strength：500VDC for one minute
Insulation resistance：100MΩ min., 500VDC
