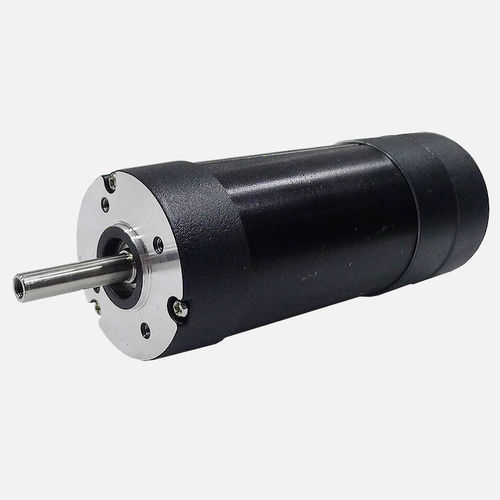

Brushless motor 57BYB seriesthree-phase24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, three-phase
- Voltage
- 24 V, 12 V, 48 V, 36 V, 18 V, 60 V, 80 V, 70 V
- Number of poles
- 4-pole
- Power
Min.: 33.5 W
(0.05 hp)Max.: 238 W
(0.32 hp)- Torque
0.16 Nm, 0.29 Nm, 0.41 Nm, 0.57 Nm
(0.11801 ft.lb, 0.213893 ft.lb, 0.3024 ft.lb, 0.42041 ft.lb)- Rotational speed
2,000 rpm, 4,000 rpm
(12,566.3706 rad.min-1, 25,132.7412 rad.min-1)
Description
GENERAL SPECIFICATION
Winding type：Delta
Hall effect angle：120 Deg. Electrical angle
Radial play：0.025mm /460g
End play：0.025mm /4000g
Max. radial force：75N @ 20mm from the flange
Max. axial force：15N
Insulation class：B
Dielectric strength：500VDC for one minute
Insulation resistance：100MΩ min., 500VDC
