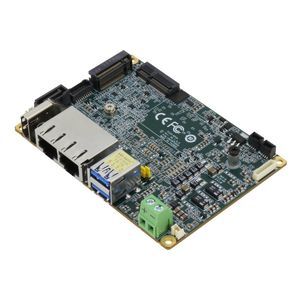

Pico-ITX Board with 11th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC
The PICO-TGU4 compact PICO-ITX board is powered by the 11th Generation Intel® Core™ G processors (formerly Tiger Lake). By leveraging AAEON’s expertise and the cutting-edge technologies offered with this latest generation of processors, the PICO-TGU4 delivers performance and flexibility to power the next generation of AI Edge applications.
The 11th Generation Intel Core processors (formerly Tiger Lake) are the third generation of Intel’s 10nm microarchitecture, delivering up to 15~20% better performance than the previous generation processors. The PICO-TGU4 offers users the choice of Intel Core G i3/i5/i7 or Intel Celeron® processors to power their projects. These processors support a range of technologies including on-board TPM 2.0 and in-band ECC. The board features 32GB of on-board LPDDR4x memory, and SATA III (6.0 Gbps) storage.
One of the core features of the PICO-TGU4 are its two expansion slots; the M.2 2280 slot (PCIe 4.0) which supports next generation AI accelerators; and the full-sized Mini Card slot which supports extra storage, Wi-Fi, Bluetooth, and more. The PICO-TGU4 also features dual LAN ports, one Intel i225 2.5 Gbps port for ultra-fast LAN connectivity, and on Intel i219 port with support for Intel vPro, enabling remote system monitoring.
The PICO-TGU4 offers a broad I/O layout to connect with a wide range of sensors and easily integrate with projects. The board features a total of eight USB connections, with two USB3.2 Gen 2 type A ports, two USB3.2 Gen 1 headers and four USB2.0 headers.
